35EB | Aero-Motive
Balancer, 35EB, load capacity (min/max) 11.4 to 15.9 kg, stroke 2 m, without locking, 1301710302
Balancer, 1301710302, Aero-Motive

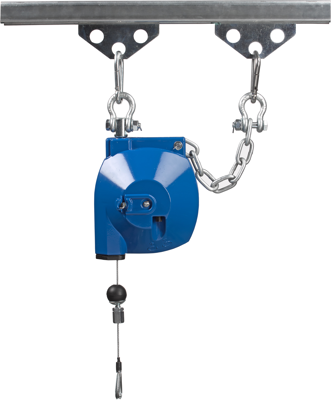

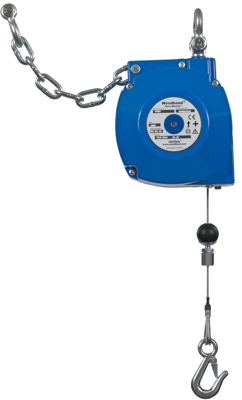

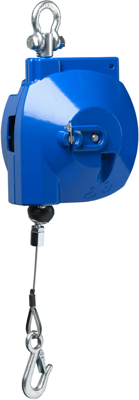

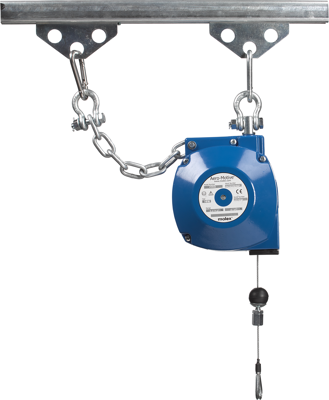

Aero-Motive Heavy Industrial Duty EB Balancer with Ratchet Lock, Bottom Bullard Hook-Cable and Upper Bullard Hook on Upper Shackle Assembly, Weight Range 11.4-15.9 kg (25.0-35.0 lb), 2.0 m (6.60') Travel
EB Serie balancers are devices designed to provide constant tension throughout the specified active cable travel. A true balance condition is achieved through precise power-spring tension control and a unique cable drum design which matches the torque build-up from the power spring.
Tools attached to Aero-Motive Balancers become almost weightless in the hands of operators, allowing maximum freedom to work more efficiently and reduce fatigue throughout work shifts, leading to increased productivity
Applications
- Portable tools
- Manufacturing
- Assembly facilities
- Workstations
- Electric Tools
Arretierung | ohne Arretierung | |
Ausführung | Balancer | |
Gehäusematerial | Aluminium | |
Gewicht | 10 kg | |
Hub | 2 m | |
Seil-Durchmesser | 3.18 mm | |
Absturzsicherung | Yes | |
Federbruchsicherung | Yes | |
Manuelle Arretierung | Yes | |
Seilauszug | 2 m | |
Tragfaehigkeit Max | 15.9 kg | |
Tragfaehigkeit Min | 11.4 kg | |
Tragseil | Verzinkt |
Ursprungsland | DE |
Zolltarifnummer | 84253900 |
RoHS konform | not_relevant |
Stand der RoHS-Richtlinie | 3/31/15 |
SVHC frei | Yes |
