35EBS | Aero-Motive
Balancer, 35EBS, load capacity (min/max) 11.4 to 15.9 kg, stroke 2 m, without locking, 1301710304
Unit Price (€ / pc.)
1,043.6181 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,043.62 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,043.6181 €
Balancer, 1301710304, Aero-Motive

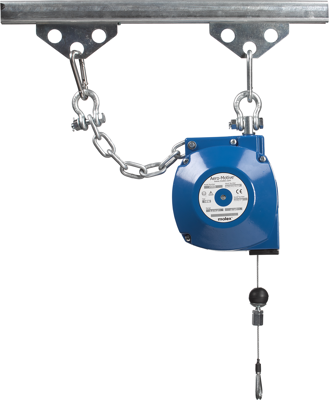

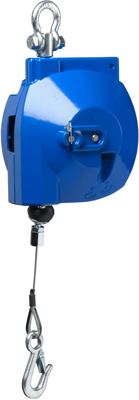

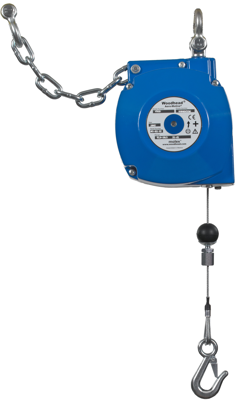

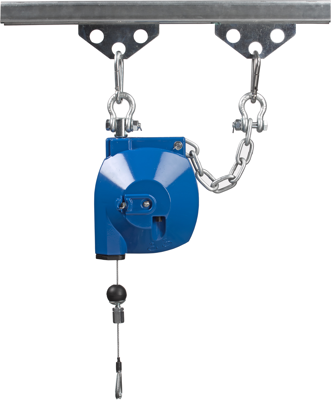

Aero-Motive Heavy Industrial Duty EB Balancer with Ratchet Lock, Bottom Bullard Hook-Cable and Upper Bullard Hook on Upper Shackle Assembly, Weight Range 11.4-15.9 kg (25.0-35.0 lb), 2.0 m (6.60') Travel
EB Serie balancers are devices designed to provide constant tension throughout the specified active cable travel. A true balance condition is achieved through precise power-spring tension control and a unique cable drum design which matches the torque build-up from the power spring.
Tools attached to Aero-Motive Balancers become almost weightless in the hands of operators, allowing maximum freedom to work more efficiently and reduce fatigue throughout work shifts, leading to increased productivity
Applications
- Portable tools
- Manufacturing
- Assembly facilities
- Workstations
- Electric Tools
Technical specifications
| Locking | without locking | |
| Version | balancer | |
| Shell Material | aluminum | |
| Weight | 10 kg | |
| Stroke | 2 m | |
| Rope Diameter | 3.18 mm | |
| Fall protection | Yes | |
| Spring fracture safety device | Yes | |
| Manual locking | Yes | |
| Rope pullout | 1.5 m | |
| Max Load capacity | 15.9 kg | |
| Min Load capacity | 11.4 kg | |
| Suspension Rope | galvanized |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84253900 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
