50EA | Aero-Motive
Balancer, 50EA, load capacity (min/max) 18 to 23 kg, stroke 1.8 m, without locking, 1301720195
Unit Price (€ / pc.)
1,256.5805 € *
Available: 9 pcs.
Leadtime: 36 Weeks **
Total Price:
1,256.58 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,256.5805 €

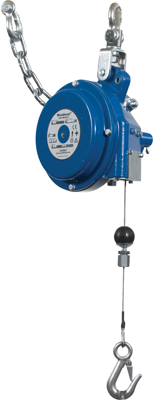

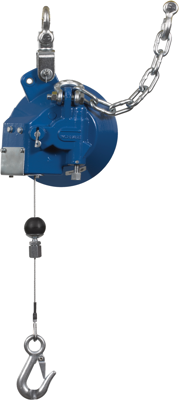

Balancer, 1301720195, Aero-Motive
Aero-Motive Heavy Industrial Duty EA Balancer with Heavy Cast Aluminum Housing and Cover, Upper / Lower Bullard Hooks and Upper Shackle Assembly, Weight Range 18.0-23.0 kg (40.0-51.0 lb), 1.80 m (6.0') Travel
EA Serie balancers are devices designed to provide constant cable tension throughout a specified length of cable travel. A true balance condition is achieved through precise power-spring tension control and a unique cable drum design which matches the torque buildup from the power spring.
Tools attached to Aero-Motive Balancers become almost weightless in the hands of operators, allowing maximum freedom to work more efficiently and reduce fatigue throughout work shifts, leading to increased productivity
Applications
- Portable tools
- Manufacturing
- Assembly facilities
- Workstations
- Electric Tools
Technical specifications
| Locking | without locking | |
| Version | balancer | |
| Shell Material | aluminum | |
| Weight | 8.6 kg | |
| Stroke | 1.8 m | |
| Rope Diameter | 3.18 mm | |
| Fall protection | Yes | |
| Spring fracture safety device | Yes | |
| Manual locking | Yes | |
| Rope pullout | 1.8 m | |
| Max Load capacity | 23 kg | |
| Min Load capacity | 18 kg | |
| Suspension Rope | galvanized |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84253900 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
