5FLRC | Aero-Motive

Retractor, 5FLRC, load capacity (min/max) 1 to 3 kg, stroke 2.4 m, with locking, 1301740014

Order No.: 12P6643
EAN: 4099891450403
MPN:
5FLRC
1301740014
Series: FLRC

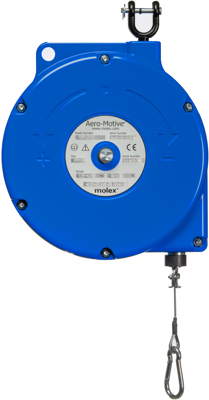

5FLRC Aero-Motive Spring Balancers Image 1

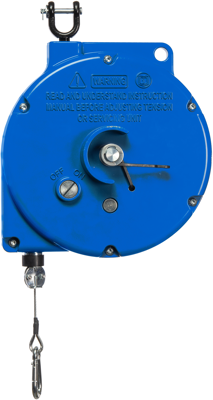

5FLRC Aero-Motive Spring Balancers Image 2
5FLRC Aero-Motive Spring Balancers Image 3
Image may differ
Unit Price (€ / pc.)
462.5411 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
462.54 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
462.5411 €

Retractor, 1301740014, Aero-Motive

Aero-Motive Heavy Industrial Duty Cast Aluminum Retractor with Ratchet Lock, Weight Range 0.5-2.3 kg (1.0-5.0 lb), 2.40 m (8.0') Travel

Retractors are designed to retract a tool or load when no force is applied on it. Constant downward force has to be applied in order to keep the suspended tool/load in position. The torque output of the rewind spring increases as the cable is pulled out of the unit, retracting the suspended tool/load to the uppermost adjusted position when released.

Field proven Aero-Motive® retractors feature power springs for excellent life cycles and ergonomics in virtually any industrial work space

Features

  • New and improved power springs
  • Provides excellent ergonomics and life cycles
  • Durable stranded-steel aircraft cable features adjustable cable stop
  • Increased durability Allows tools to be set at different positions/ heights
Technical specifications
Arretierung mit Arretierung
Ausführung Federzug
Gehäusematerial Aluminium
Gewicht 5.9 kg
Hub 2.4 m
Seil-Durchmesser 2.38 mm
Absturzsicherung No
Federbruchsicherung No
Manuelle Arretierung No
Seilauszug 2.4 m
Tragfaehigkeit Max 3 kg
Tragfaehigkeit Min 1 kg
Tragseil Verzinkt
Logistics
Ursprungsland DE
Zolltarifnummer 84253900
Compliance
RoHS konform not_relevant
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
