9030JA | Aero-Motive
Balancer, 9030JA, load capacity (min/max) 9 to 14 kg, stroke 2.74 m, without locking, 1301720271
Unit Price (€ / pc.)
1,806.9198 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,806.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,806.9198 €

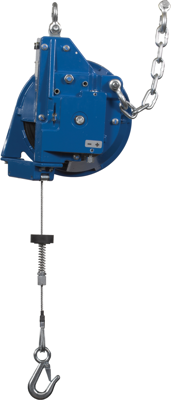

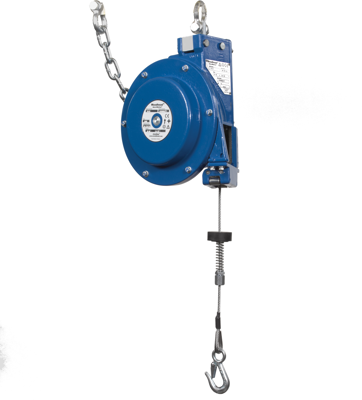

Balancer, 1301720271, Aero-Motive
Aero-Motive Heavy Industrial Duty JA Balancer with Extended Cable Travel, Weight Range 9.0-14.0 kg (20.0-30.0 lb), 2.74 m (9.0') Travel
JA Series balancers, equipped with one power spring, were designed specifically for Heavy Industrial Applications and are ideal for balancing industrial tools weighing up to 100 lb [45 kg]. Tools attached to JA Series balancers become almost weightless in the hands of operators, allowing maximum freedom to work more efficiently and reduce fatigue through_x0002_out work shifts.
Technical specifications
| Locking | without locking | |
| Version | balancer | |
| Shell Material | aluminum | |
| Weight | 17.5 kg | |
| Stroke | 2.74 m | |
| Rope Diameter | 4.76 mm | |
| Fall protection | Yes | |
| Spring fracture safety device | Yes | |
| Manual locking | Yes | |
| Rope pullout | 2.7 m | |
| Max Load capacity | 14 kg | |
| Min Load capacity | 9 kg | |
| Suspension Rope | galvanized |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84253900 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
