9040JA | Aero-Motive
Balancer, 9040JA, load capacity (min/max) 13 to 18 kg, stroke 2.74 m, without locking, 1301720277
Unit Price (€ / pc.)
1,806.9198 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,806.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,806.9198 €

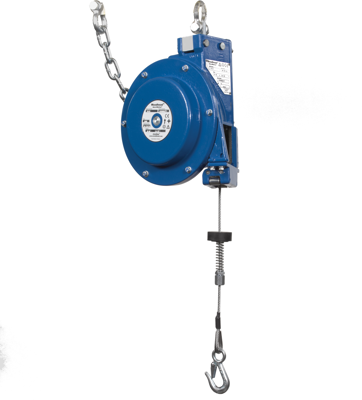

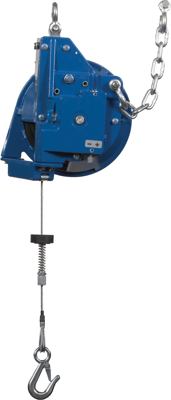

Balancer, 1301720277, Aero-Motive
Aero-Motive Heavy Industrial Duty JA Balancer with Extended Cable Travel, Weight Range 13.0-18.0 kg (30.0-40.0 lb), 2.74 m (9.0') Travel
JA Series balancers, equipped with one power spring, were designed specifically for Heavy Industrial Applications and are ideal for balancing industrial tools weighing up to 100 lb [45 kg]. Tools attached to JA Series balancers become almost weightless in the hands of operators, allowing maximum freedom to work more efficiently and reduce fatigue through_x0002_out work shifts.
Technical specifications
| Arretierung | ohne Arretierung | |
| Ausführung | Balancer | |
| Gehäusematerial | Aluminium | |
| Gewicht | 17.5 kg | |
| Hub | 2.74 m | |
| Seil-Durchmesser | 4.76 mm | |
| Absturzsicherung | Yes | |
| Federbruchsicherung | Yes | |
| Manuelle Arretierung | Yes | |
| Seilauszug | 2.7 m | |
| Tragfaehigkeit Max | 18 kg | |
| Tragfaehigkeit Min | 13 kg | |
| Tragseil | Verzinkt |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 84253900 |
Compliance
| RoHS konform | not_relevant |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
