9060JA | Aero-Motive

Balancer, 9060JA, load capacity (min/max) 23 to 29 kg, stroke 2.74 m, without locking, 1301720287

Order No.: 12P6606
EAN: 4099891450199
MPN:
9060JA
1301720287
Series: JA

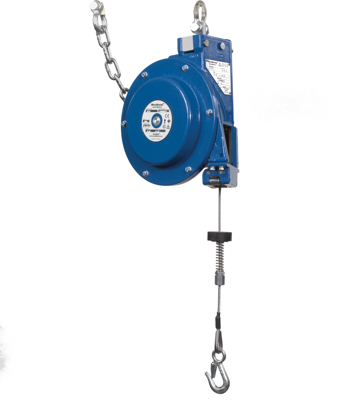

9060JA Aero-Motive Spring Balancers Image 1

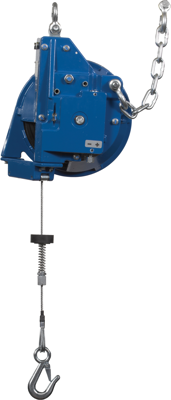

9060JA Aero-Motive Spring Balancers Image 2

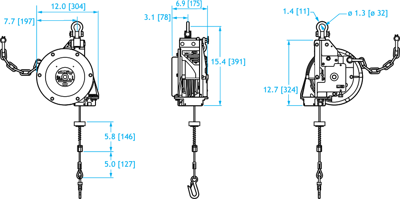

9060JA Aero-Motive Spring Balancers Image 3
Image may differ
Unit Price (€ / pc.)
1,806.9198 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,806.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,806.9198 €

Balancer, 1301720287, Aero-Motive

Aero-Motive Heavy Industrial Duty JA Balancer with Extended Cable Travel, Weight Range 23.0-29.0 kg (50.0-65.0 lb), 2.74 m (9.0') Travel

JA Series balancers, equipped with one power spring, were designed specifically for Heavy Industrial Applications and are ideal for balancing industrial tools weighing up to 100 lb [45 kg]. Tools attached to JA Series balancers become almost weightless in the hands of operators, allowing maximum freedom to work more efficiently and reduce fatigue through_x0002_out work shifts.

Technical specifications
Version Balancer
Stroke 2.74 m
Rope Diameter 4.76 mm
Weight 17.5 kg
Max Load capacity 29 kg
Min Load capacity 23 kg
Spring fracture safety device Yes
Rope pullout 2.7 m
Manual locking Yes
Fall protection Yes
Suspension Rope Verzinkt
Locking ohne Arretierung
Shell Material Aluminium
Logistics
Country of origin DE
Customs tariff number 84253900
Compliance
RoHS conform not_relevant
Date of RoHS guidelines 3/31/15
SVHC free Yes
