90JA | Aero-Motive

Balancer, 90JA, load capacity (min/max) 36 to 41 kg, stroke 2.1 m, without locking, 1301720296

Order No.: 12P6608
EAN: 4099891450212
MPN:
90JA
1301720296
Series: JA

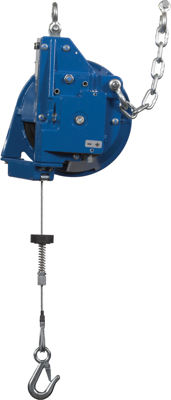

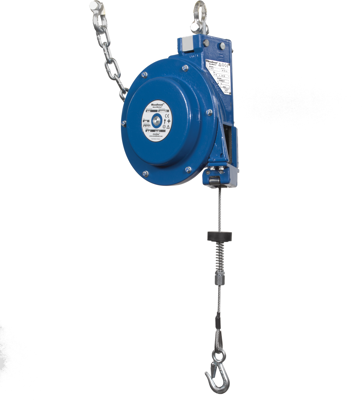

90JA Aero-Motive Spring Balancers Image 1
90JA Aero-Motive Spring Balancers Image 2
90JA Aero-Motive Spring Balancers Image 3
Image may differ
Unit Price (€ / pc.)
1,652.3031 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
1,652.30 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,652.3031 €

Balancer, 1301720296, Aero-Motive

Aero-Motive Heavy Industrial Duty JA Balancer, Weight Range 36.0-41.0 kg (79.0-90.0 lb), 2.13 m (7.0') Travel

JA Series balancers, equipped with one power spring, were designed specifically for Heavy Industrial Applications and are ideal for balancing industrial tools weighing up to 100 lb [45 kg]. Tools attached to JA Series balancers become almost weightless in the hands of operators, allowing maximum freedom to work more efficiently and reduce fatigue through_x0002_out work shifts.

Technical specifications
Locking ohne Arretierung
Version Balancer
Shell Material Aluminium
Weight 17.5 kg
Stroke 2.1 m
Rope Diameter 4.76 mm
Fall protection Yes
Spring fracture safety device Yes
Manual locking Yes
Rope pullout 2.1 m
Max Load capacity 41 kg
Min Load capacity 36 kg
Suspension Rope Verzinkt
Logistics
Country of origin DE
Customs tariff number 84253900
Compliance
RoHS conform not_relevant
Date of RoHS guidelines 3/31/15
SVHC free Yes
