AB11RL | Aero-Motive

Balancer, AB11RL, load capacity (min/max) 3.6 to 5 kg, stroke 1.6 m, with locking, 1302370006

Order No.: 12P7151
EAN: 4099891452223
MPN:
AB11RL
1302370006
Series: AB

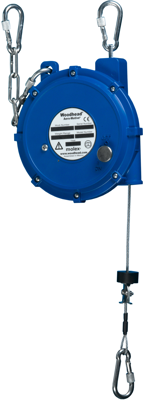

AB11RL Aero-Motive Spring Balancers Image 1
AB11RL Aero-Motive Spring Balancers Image 2
Image may differ
Unit Price (€ / pc.)
197.5995 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
197.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
197.5995 €

Balancer, 1302370006, Aero-Motive

Aero-Motive Light Industrial Duty AB Balancer with Ratchet Lock, Weight Range 3.6-5.0 kg (8.0-11.0lb), 1.50 m (4.92') Travel

AB Serie balancers are devices designed to provide constant cable tension throughout a specified length of cable travel. A true balance condition is achieved through precise power-spring tension control and a unique cable drum design which matches the torque buildup from the power spring. Tools or loads attached to Aero-Motive Balancers become almost weightless in the hands of operators, allowing maximum freedom to work more efficiently and reduce fatigue throughout work shifts, leading to increased productivity

Compact, ergonomic and cost-effective balancers are streamlined to fit virtually any work space, improve productivity by keeping tools organized and safeguard expensive power tools from possible accidents with superior suspension features

Applications

  • Portable tools
  • Manufacturing
  • Assembly facilities
  • Workstations
  • Electric Tools
Technical specifications
Version Balancer
Stroke 1.6 m
Rope Diameter 3.18 mm
Weight 1.5 kg
Max Load capacity 5 kg
Min Load capacity 3.6 kg
Spring fracture safety device No
Rope pullout 1.6 m
Manual locking No
Fall protection Yes
Suspension Rope Verzinkt und ummantelt
Locking mit Arretierung
Shell Material Kunststoff
Logistics
Country of origin DE
Customs tariff number 84253900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
