1-2213766-9 | Alcoswitch

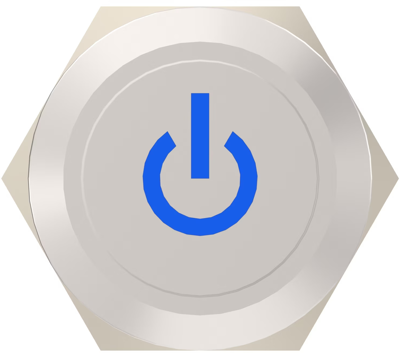

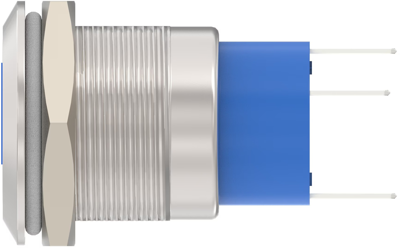

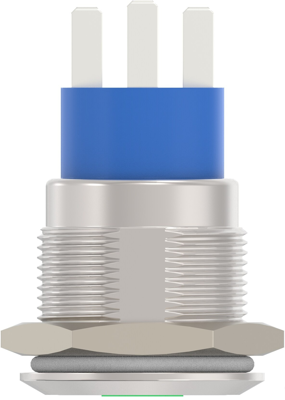

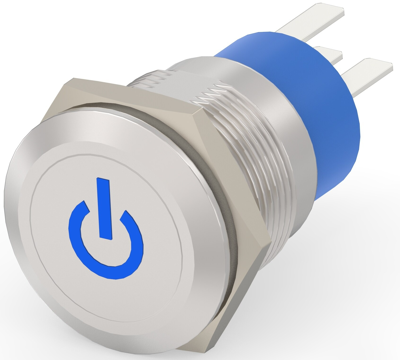

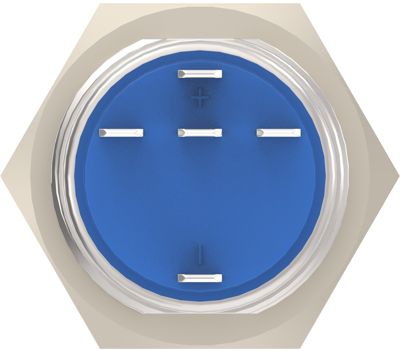

Pushbutton, 1 pole, silver, illuminated (blue), 5 A/250 V, mounting Ø 19.2 mm, IP67, 1-2213766-9
Order No.: 38P9265
EAN: 4099889194913
MPN:
1-2213766-9
Unit Price (€ / pc.)
19.2542 € *
Available: 0 pcs.
Leadtime: On Request **
Push Button Switch, 1-2213766-9, Alcoswitch
Dust Proof: Yes, Push Button Switch Product Type: Vandal Resistant, Illuminated: Yes, Actuator Style: Round, ESD Grounding Terminal: Without, Configuration (Pole-Throw): Single Pole - Single Throw, Number of Actuators: Single, Snap Action: Without, Support Bracket: Without, Push Button Switch Voltage Rating: 250 VAC, Case Material: PBT, Actuator Profile: Flush, Bushing Style: Threaded, Push Button Switch Contact Current Rating: 5 A, Switch Contact Plating Material: Silver, Termination Type: Wire Lugs, Mounting Angle: Vertical, Push Button Switch Mounting Type: Panel, Process Sealed: Yes, Bushing Length.
Technical specifications
| Connection | solder lug | |
| Design | round | |
| Printed | Yes | |
| illuminated | Yes | |
| Installation diameter | 19.2 mm | |
| Actuator colour | silver | |
| Farbe der Beleuchtung | blue | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Latching switching function | groping | |
| Breaking capacity | 5 A/250 V | |
| Protection class | IP67 | |
| Vandal-proof | Yes | |
| Wall thickness | 10 mm |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
