2213763-7 | Alcoswitch

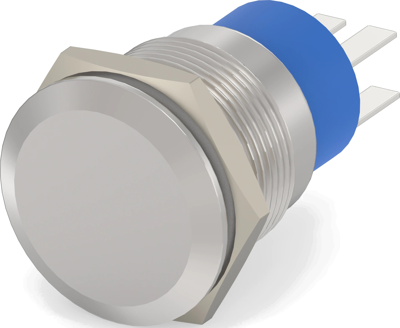

Pushbutton, 2 pole, silver, unlit , 5 A/250 V, mounting Ø 19.2 mm, IP67, 2213763-7
Order No.: 38P9219
EAN: 4099889194456
MPN:
2213763-7
Unit Price (€ / pc.)
16.6838 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
16.68 € *
Price list
Quantity
Price per unit*
1 pcs.
16.6838 €
10 pcs.
15.3510 €
50 pcs.
13.8159 €
100 pcs.
12.5664 €
*incl. VAT plus shipping costs
**Subject to prior sale
Push Button Switch, 2213763-7, Alcoswitch
Dust Proof: Yes, Push Button Switch Product Type: Vandal Resistant, Illuminated: No, Actuator Style: Round, ESD Grounding Terminal: Without, Configuration (Pole-Throw): Double Pole - Double Throw, Number of Actuators: Single, Snap Action: Without, Support Bracket: Without, Push Button Switch Voltage Rating: 250 VAC, Case Material: PBT, Actuator Profile: Flush, Bushing Style: Threaded, Push Button Switch Contact Current Rating: 5 A, Switch Contact Plating Material: Silver, Termination Type: Wire Lugs, Mounting Angle: Vertical, Push Button Switch Mounting Type: Panel, Process Sealed: Yes, Bushing Length.
Technical specifications
| Anschluss | Lötöse | |
| Bauform | rund | |
| Bedruckt | No | |
| beleuchtet | No | |
| Einbaudurchmesser | 19.2 mm | |
| Farbe Betätiger | silber | |
| Kontaktoberfläche | versilbert | |
| Polzahl | 2-polig | |
| Schaltfunktion | rastend | |
| Schaltleistung | 5 A/250 V | |
| Schutzart (Betätigungsseite) | IP67 | |
| Vandalengeschützt | Yes | |
| Wandstärke | 10 mm |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
