2213767-6 | Alcoswitch

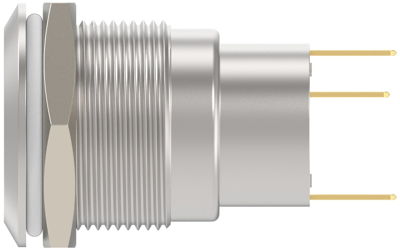

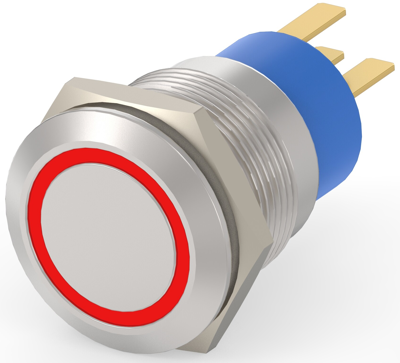

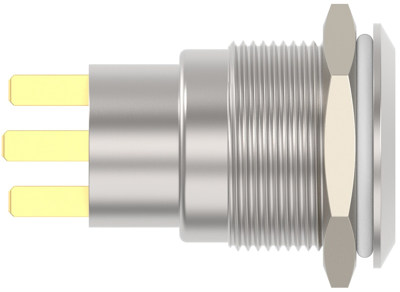

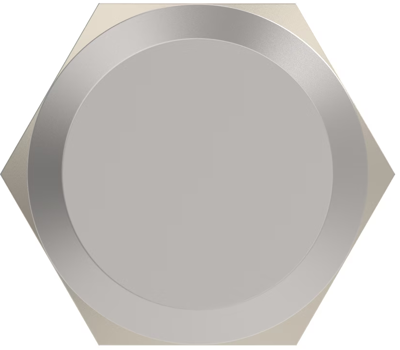

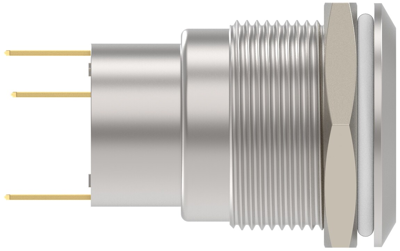

Switch, 1 pole, silver, illuminated (red), 0.4 A/250 VAC, mounting Ø 19.2 mm, IP67, 2213767-6
Unit Price (€ / pc.)
14.6965 € *
Available: 0 pcs.
Available in 5 Days: 99 pcs.
Leadtime: 18 Weeks **
Total Price:
14.70 € *
Price list
Quantity
Price per unit*
10 pcs.
14.6965 €
30 pcs.
14.4228 €
*incl. VAT plus shipping costs
**Subject to prior sale
Push button switch, 2213767-6, Alcoswitch
The 2213767-2 is designed for security and reliability in a variety of panel mount industrial and building applications. This product achieves a vandal proof solution with a jam nut accessible for rear of the panel.
Applications
- Industrial equipment
- Elevators/Escalators
- Instrumentation
- Communication equipment
- Control equipment
Technical specifications
| Connection | solder lug | |
| Design | round | |
| Printed | No | |
| illuminated | Yes | |
| Installation diameter | 19.2 mm | |
| Actuator colour | silver | |
| Farbe der Beleuchtung | red | |
| contact surface | gold-plated | |
| Pin number | 1 pole | |
| Latching switching function | groping | |
| Breaking capacity | 0.4 A/250 VAC | |
| Protection class | IP67 | |
| Vandal-proof | Yes | |
| Wall thickness | 10 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
