2213774-7 | Alcoswitch

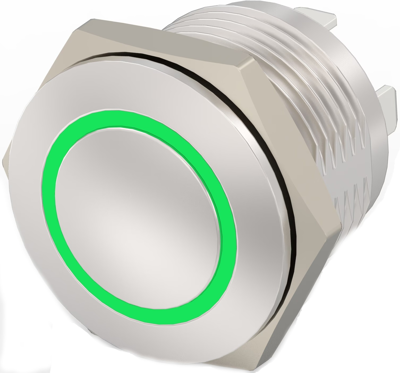

Pushbutton, 1 pole, silver, illuminated (green), 0.4 A/36 V, mounting Ø 16 mm, IP67, 2213774-7
Order No.: 38P9208
EAN: 4099889194340
MPN:
2213774-7
Unit Price (€ / pc.)
11.067 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Push Button Switch, 2213774-7, Alcoswitch
Dust Proof: Yes, Push Button Switch Product Type: Vandal Resistant, Illuminated: Yes, Actuator Style: Round, ESD Grounding Terminal: Without, Configuration (Pole-Throw): Single Pole - Single Throw, Number of Actuators: Single, Snap Action: Without, Support Bracket: Without, Push Button Switch Voltage Rating: 36 VDC, Case Material: PBT, Actuator Profile: Flush, Bushing Style: Threaded, Push Button Switch Contact Current Rating: .4 A, Switch Contact Plating Material: Gold, Termination Type: Wire Lugs, Mounting Angle: Vertical, Push Button Switch Mounting Type: Panel, Process Sealed: Yes, Bushing Length.
Technical specifications
| Anschluss | Lötöse | |
| Bauform | rund | |
| Bedruckt | No | |
| beleuchtet | Yes | |
| Einbaudurchmesser | 16 mm | |
| Farbe Betätiger | silber | |
| Farbe der Beleuchtung | grün | |
| Kontaktoberfläche | vergoldet | |
| Polzahl | 1-polig | |
| Schaltfunktion | tastend | |
| Schaltleistung | 0,4 A/36 V | |
| Schutzart (Betätigungsseite) | IP67 | |
| Vandalengeschützt | Yes | |
| Wandstärke | 8 mm |
Download
Logistics
| Ursprungsland | TW |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
