2342840-3 | Alcoswitch
Switch, 1 pole, silver, illuminated (RGB), 1 A/24 VDC, mounting Ø 19.2 mm, IP68, 2342840-3
Unit Price (€ / pc.)
62.7963 € *
Available: 0 pcs.
Available in 5 Days: 75 pcs.
Leadtime: 18 Weeks **

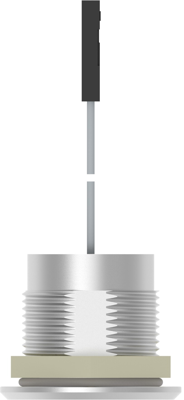

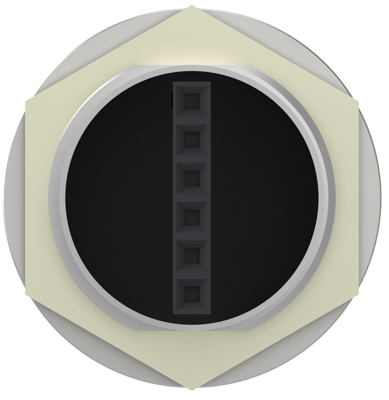

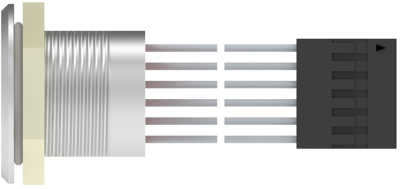

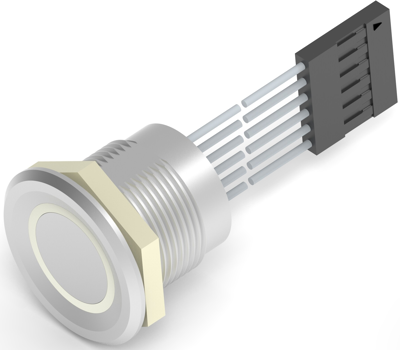

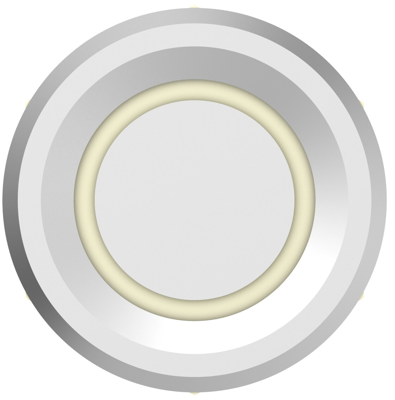

Push button switch, 2342840-3, Alcoswitch
Push button switch, Single Pole-Single Throw Configuration (Pole-Throw), Anti-Vandal, 1 Actuator, Flush actuator profile.
Features
- High strength
- Corrosion resistance
- Easy heat dissipation
- Momentary actuation
- Light weight
Applications
- Industrial Control
- Communication Equipment
- Medical Equipment
Technical specifications
| Connection | wire connection | |
| Design | round | |
| Printed | No | |
| illuminated | Yes | |
| Installation diameter | 19.2 mm | |
| Actuator colour | silver | |
| Farbe der Beleuchtung | RGB | |
| Pin number | 1 pole | |
| Latching switching function | groping | |
| Breaking capacity | 1 A/24 VDC | |
| Protection class | IP68 | |
| Vandal-proof | Yes | |
| Wall thickness | 10 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
