3-2317570-6 | Alcoswitch
Switch, 1 pole, silver, illuminated (red/green), 3 A/250 VAC, mounting Ø 22.2 mm, IP67, 3-2317570-6
Unit Price (€ / pc.)
28.2268 € *
Available: 0 pcs.
Available in 5 Days: 99 pcs.
Leadtime: 18 Weeks **
Total Price:
28.23 € *
Price list
Quantity
Price per unit*
4 pcs.
28.2268 €
18 pcs.
27.7032 €
*incl. VAT plus shipping costs
**Subject to prior sale

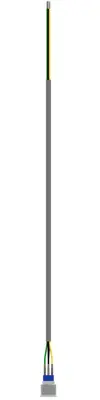

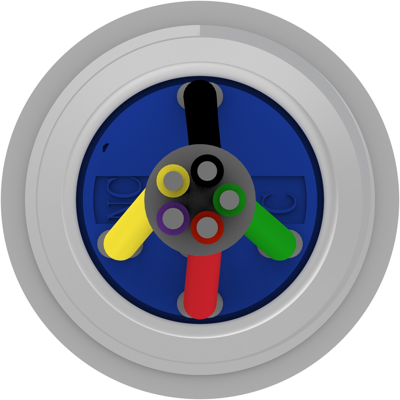

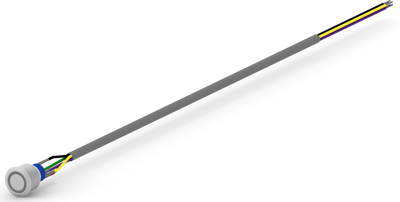

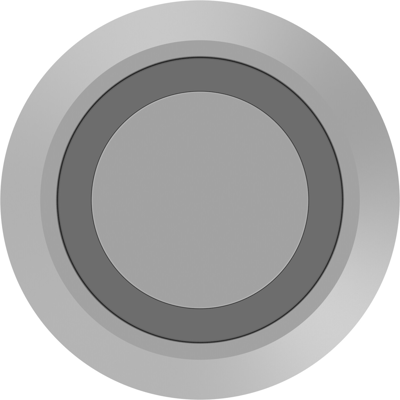

Push button switch, 3-2317570-6, Alcoswitch
The 4-2317570-1 is designed for security and reliability in a variety of panel mount industrial and building applications. This product achieves a vandal proof solution with a jam nut accessible for rear of the panel.
Applications
- Industrial equipment
- Elevators/Escalators
- Instrumentation
- Communication equipment
- Control equipment
Technical specifications
| Connection | wire connection | |
| Design | round | |
| Printed | No | |
| illuminated | Yes | |
| Installation diameter | 22.2 mm | |
| Actuator colour | silver | |
| Farbe der Beleuchtung | red/green | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Latching switching function | latching | |
| Breaking capacity | 3 A/250 VAC | |
| Protection class | IP67 | |
| Vandal-proof | Yes | |
| Wall thickness | 10 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
