5-1437567-6 | Alcoswitch

Pushbutton, 3 pole, natural, unlit , 6 A/250 V, 5-1437567-6

Order No.: 19G1014
EAN: 4099889193817
MPN:
5-1437567-6
MPG306F
Series: MPG
Alcoswitch

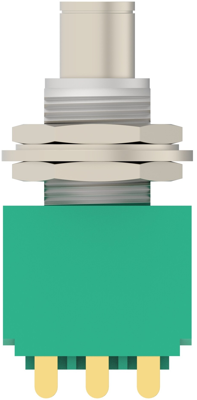

5-1437567-6 Alcoswitch Pushbutton Switches Image 1

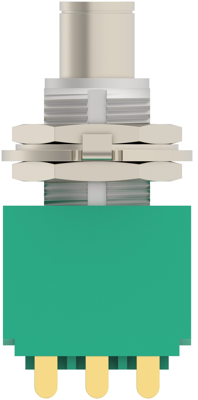

5-1437567-6 Alcoswitch Pushbutton Switches Image 2

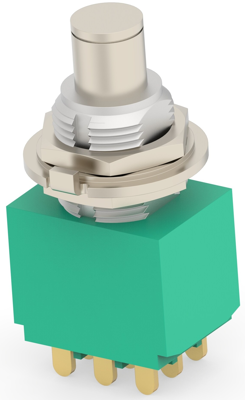

5-1437567-6 Alcoswitch Pushbutton Switches Image 3

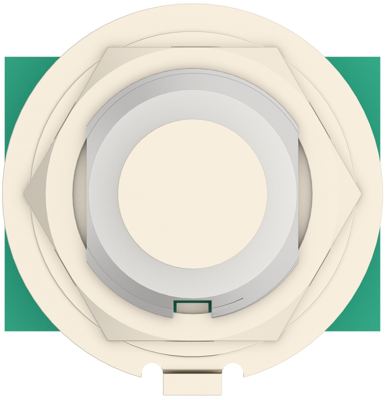

5-1437567-6 Alcoswitch Pushbutton Switches Image 4

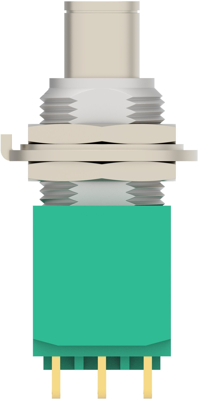

5-1437567-6 Alcoswitch Pushbutton Switches Image 5
Image may differ
Unit Price (€ / pc.)
25.4898 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
25.49 € *
Price list
Quantity
Price per unit*
100 pcs.
25.4898 €
250 pcs.
24.7282 €
*incl. VAT plus shipping costs
**Subject to prior sale

Push Button Switch, 5-1437567-6, Alcoswitch

Dust Proof: No, Push Button Switch Product Type: Switch, Illuminated: No, Actuator Style: Cap - Supplied, ESD Grounding Terminal: Without, Configuration (Pole-Throw): Three Pole - Double Throw, Number of Actuators: Single, Snap Action: Without, Support Bracket: Without, Push Button Switch Voltage Rating: 28 VDC, Push Button Switch Voltage Rating: 125 VAC,250 VAC, Actuator Material: Phenol Resin, Actuator Profile: Extended, Bushing Style: Threaded, Bushing Thread Size: 15/32, Actuator Color: Natural, Contact Base Material: Silver Clad Copper, Push Button Switch Contact Current Rating: 6 A, Switch Contact Plating Material: Silver Clad with Gold Flash, Termination Type: Wire Lugs, Screw & Hole Thread Size: 15/32-32 UNS-2A, Push Button Switch Mounting Type: Panel, Low Profile: No, Process Sealed: No, Actuator Length: 8 mm, Temperature Rating: Standard, Packaging Method: Bulk, Comment: Black cap is supplied.,Other cap colors available (cap model C9).

Technical specifications
Connection solder lug
Design round
Printed No
illuminated No
Actuator colour natural
contact surface silver-plated
Pin number 3 pole
Latching switching function groping
Breaking capacity 6 A/250 V
Vandal-proof No
Logistics
Country of origin CZ
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
