1571113-1 | Alcoswitch
Rocker switch, black, 2 pole, On-On, Changeover switch, 16 A/125 VAC, unlit, unprinted, 1571113-1
Unit Price (€ / pc.)
3.7485 € *
Available: 0 pcs.
Leadtime: On Request **

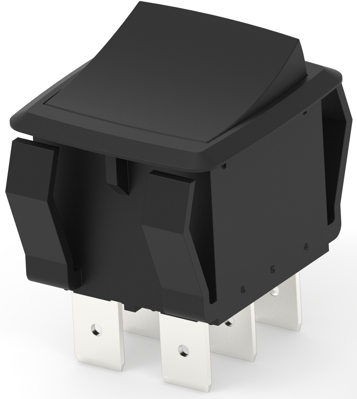

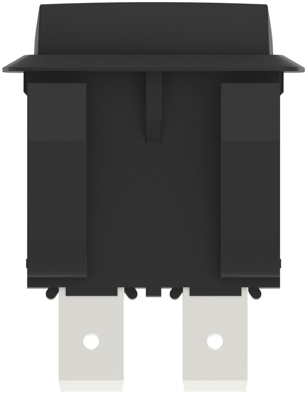

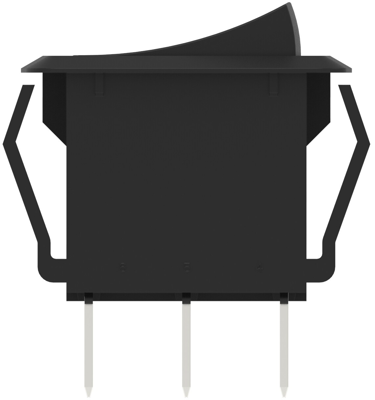

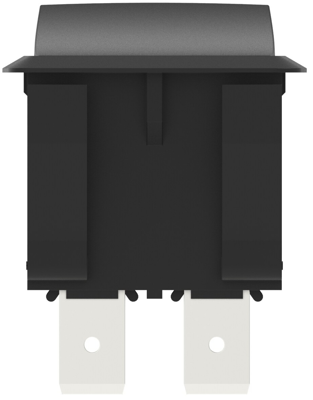

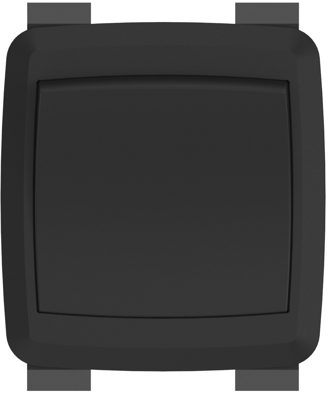

Rocker Switch, 1571113-1, Alcoswitch
Product Type: Switch, Rocker Switch Type: High Power, Lamp: Without, Rocker Switch LED: Without, Actuator Type: Top, Indicator/Imprint Legend: None, Panel Cutout Size: 21.2 x 37 mm, Configuration (Pole-Throw): Double Pole - Single Throw, Operating Function: On On, Rocker Switch Voltage Rating: 125 VAC, Rocker Switch Power Rating: 1/3 HP, Beveled Frame Color: Black, Actuator Color: Black, Terminal Tab Width: 6.35 mm, Switch Contact Plating Material: Silver, Rocker Switch Contact Current Rating: 16 A, Termination Type: Quick Connect, Mounting Angle: Vertical, Rocker Switch Mounting Type: Panel, Process Sealed: No, UL Listed: File No. E46765
Technical specifications
| Connection | quick connection | |
| Design | rectangular | |
| Printed | No | |
| illuminated | No | |
| Actuator colour | black | |
| contact surface | silver-plated | |
| min. Geräteausschnitt | 21.2 x 37 mm | |
| Pin number | 2 pole | |
| Latching switching function | Changeover switch | |
| Breaking capacity | 16 A/125 VAC | |
| Shift position | On-On |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
