1-1825002-0 | Alcoswitch

DIP switche, Off-On, 6 pole, straight, 1 A/5 VDC, 1-1825002-0

Order No.: 19G1430
EAN: 4099889205015
MPN:
1-1825002-0
ADF06T04
Series: ADF

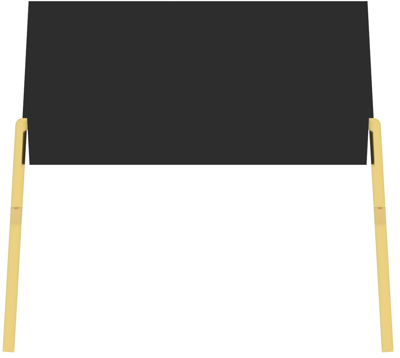

1-1825002-0 Alcoswitch Slide Switches and Coding Switches Image 1

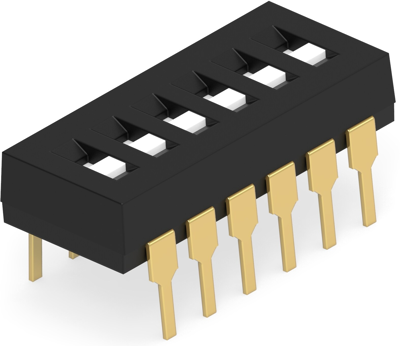

1-1825002-0 Alcoswitch Slide Switches and Coding Switches Image 2

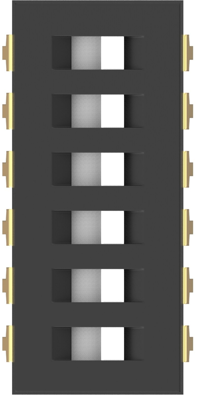

1-1825002-0 Alcoswitch Slide Switches and Coding Switches Image 3

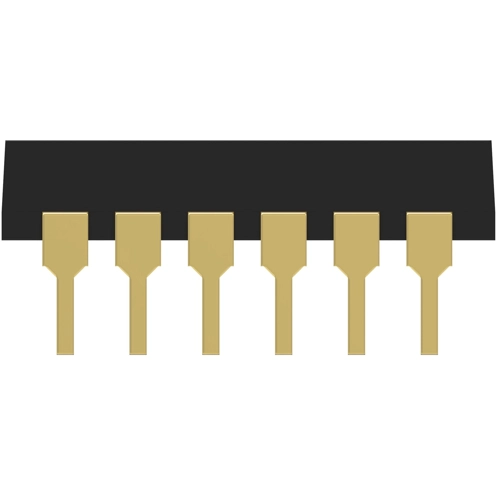

1-1825002-0 Alcoswitch Slide Switches and Coding Switches Image 4
Image may differ
Unit Price (€ / pc.)
1.1543 € *
Available: 0 pcs.
Available in 5 Days: 13,207 pcs.
Leadtime: 40 Weeks **
Total Price:
230.86 € *
Price list
Quantity
Price per unit*
200 pcs.
1.1543 €
400 pcs.
1.1305 €
*incl. VAT plus shipping costs
**Subject to prior sale

DIP Switch, 1-1825002-0, TE Connectivity

DIP & SIP Switch Product Type: Switch, Sealed DIP & SIP Switch: Yes, DIP & SIP Switch Type: DIP, Actuator Style: Flush,Slide, Number of Positions: 6, Number of Switches: 6, Configuration (Pole-Throw): Single Pole - Single Throw, DIP & SIP Switch Voltage Rating: 5 VDC, Actuator Color: White, Solder Tail Contact Plating: Gold over Nickel, DIP & SIP Switch Contact Mating Area Plating Material: Gold Flash, Auto-Insertable: Yes, DIP & SIP Switch Contact Current Rating: 1 A, Contact Base Material: Copper Alloy, Termination Post Length: 4 mm, Mounting Angle: Vertical, DIP & SIP Switch Mounting Type: Through Hole, DIP & SIP Switch Housing Color: Black, DIP & SIP Switch Housing Material: Polyphenylene Sulfide (PPS), DIP & SIP Switch Centerline: 2.54 mm, Height: 4 mm, Operating Temperature Range: -30 – 85 °C, UL Flammability Rating: UL 94V-0, Packaging Quantity: 25

Technical specifications
Anschluss Leiterplattenstift
Ausführung DIP-Schalter
Bauform gerade
Betätigung oben
Kontaktoberfläche vergoldet
Polzahl 6-polig
Rastermaß 2.54 mm
Schaltleistung 1 A/5 VDC
Schaltstellung Aus-Ein
Logistics
Ursprungsland JP
Zolltarifnummer 85365080
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
