1-1825059-3 | Alcoswitch
DIP switche, Off-On, 4 pole, straight, 1 A/5 VDC, 1-1825059-3
Unit Price (€ / pc.)
1.4280 € *
Available: 249 pcs.
Next delivery: 105 pcs. on 2025-05-22
Available in 5 Days: 6,617 pcs.
Leadtime: 20 Weeks **
Total Price:
1.43 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4280 €
25 pcs.
1.2138 €
100 pcs.
1.1186 €
250 pcs.
1.0710 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coding DIP switches, type TE Connectivity/Alcoswitch ADE../ADF../ADP.
With PCB or SMD terminals; Switching action: ON-OFF. Breaking capacity: max. 0.4 VA/20 VDC. Contact resistance: max. 50 mohm. Insulation resistance: min. 100 Mohm at 100 VDC. Dielectric strength: 500 VAC. Operating temperatures: –30 to +85 °C. Actuating force: max. 1000 g.

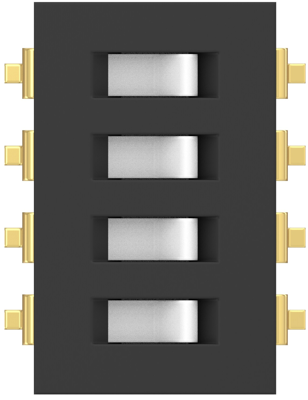

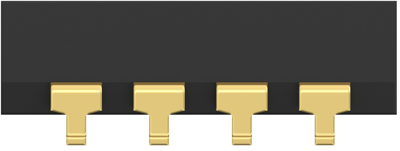

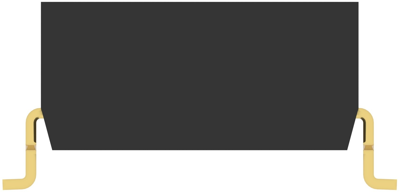

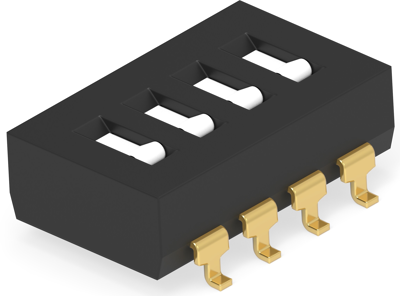

SMD terminals for top actuation with flush sliders, type ADF..S.
Technical attributes (type, number of switches, length): 1-1825059-3, 4 switches, L 12.14 mm
Technical specifications
| Connection | Gull-wing | |
| Version | DIP-Schalter | |
| Design | gerade | |
| Actuation | oben | |
| contact surface | vergoldet | |
| Pin number | 4-polig | |
| Grid | 2.54 mm | |
| Breaking capacity | 1 A/5 VDC | |
| Shift position | Aus-Ein |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
