1-2319848-0 | Alcoswitch
DIP switche, 10 pole, straight, 0.025 A/24 VDC, 1-2319848-0
Unit Price (€ / pc.)
1.5946 € *
Available: 0 pcs.
Available in 5 Days: 872 pcs.
Leadtime: 14 Weeks **
Total Price:
1.59 € *
Price list
Quantity
Price per unit*
57 pcs.
1.5946 €
304 pcs.
1.5589 €
*incl. VAT plus shipping costs
**Subject to prior sale

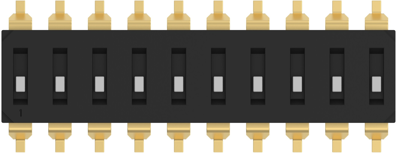

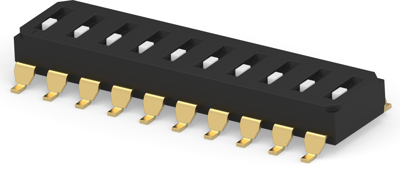

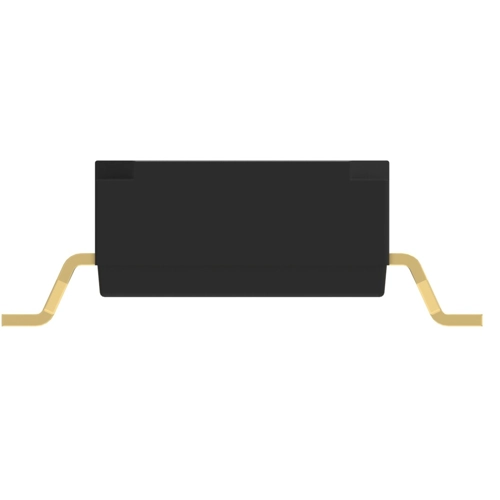

Switch, 1-2319848-0, Alcoswitch
The 1-2319848-0 is designed for space-saving and streamlined manufacturing with full Surface mount products. The end-stackable design saves space on the PCB and allows for large position counts without sacrificing centerline spacing.
Features
- Recessed actuators for design flexibility
- Gold contact plating for high reliability and corrosion resistance
Applications
- Industrial and Automated Control Boards
- Fire and security systems
- Thermostats
- Elevator/Escalator
- Telecommunication Devices
Technical specifications
| Connection | gull-wing | |
| Version | DIP switche | |
| Design | straight | |
| Actuation | on top | |
| contact surface | gold-plated | |
| Pin number | 10 pole | |
| Grid | 2.54 mm | |
| Breaking capacity | 0.025 A/24 VDC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
