1825002-1 | Alcoswitch

DIP switche, Off-On, 2 pole, straight, 1 A/5 VDC, 1825002-1

Order No.: 17G780
EAN: 4099889204285
MPN:
1825002-1
ADF0204
Series: ADF

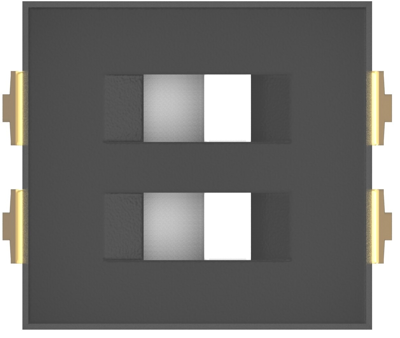

1825002-1 Alcoswitch Slide Switches and Coding Switches Image 1

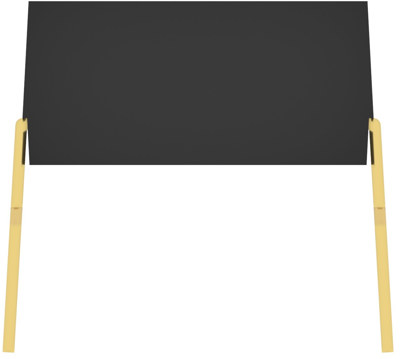

1825002-1 Alcoswitch Slide Switches and Coding Switches Image 2

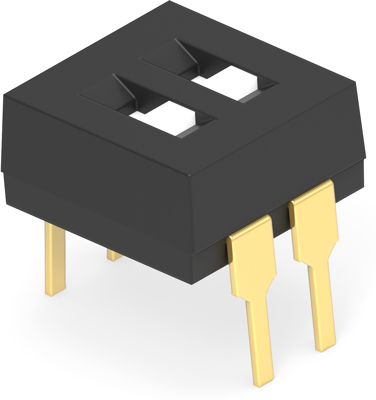

1825002-1 Alcoswitch Slide Switches and Coding Switches Image 3

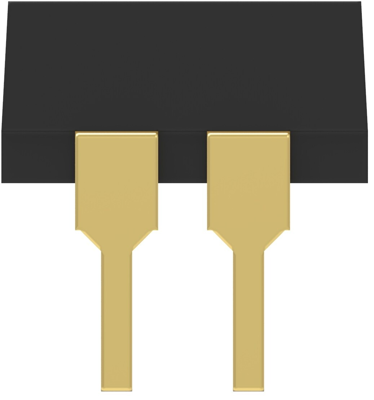

1825002-1 Alcoswitch Slide Switches and Coding Switches Image 4

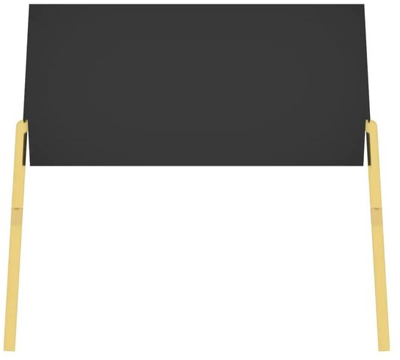

1825002-1 Alcoswitch Slide Switches and Coding Switches Image 5
Image may differ
Unit Price (€ / pc.)
1.4042 € *
Available: 5,968 pcs.
Available in 5 Days: 2,297 pcs.
Leadtime: 20 Weeks **
Total Price:
1.40 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4042 €
10 pcs.
1.3090 €
50 pcs.
1.1781 €
100 pcs.
1.0591 €
*incl. VAT plus shipping costs
**Subject to prior sale

Coding DIP switches, type TE Connectivity/Alcoswitch ADE../ADF../ADP.

With PCB or SMD terminals; Switching action: ON-OFF. Breaking capacity: max. 0.4 VA/20 VDC. Contact resistance: max. 50 mohm. Insulation resistance: min. 100 Mohm at 100 VDC. Dielectric strength: 500 VAC. Operating temperatures: –30 to +85 °C. Actuating force: max. 1000 g.

PCB connections for top actuation with flush sliders, type ADF.

Technical attributes (type, number of switches, length): 0-1825002-1, 2 switches, L 7.06 mm

Technical specifications
Anschluss Leiterplattenstift
Ausführung DIP-Schalter
Bauform gerade
Betätigung oben
Kontaktoberfläche vergoldet
Polzahl 2-polig
Rastermaß 2.54 mm
Schaltleistung 1 A/5 VDC
Schaltstellung Aus-Ein
Logistics
Ursprungsland TH
Zolltarifnummer 85365080
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
