1825002-5 | Alcoswitch

DIP switche, Off-On, 4 pole, straight, 1 A/5 VDC, 1825002-5

Order No.: 17G782
EAN: 4099889204292
MPN:
1825002-5
ADF0404
Series: ADF
Alcoswitch

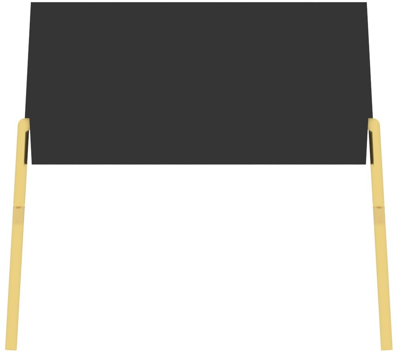

1825002-5 Alcoswitch Slide Switches and Coding Switches Image 1

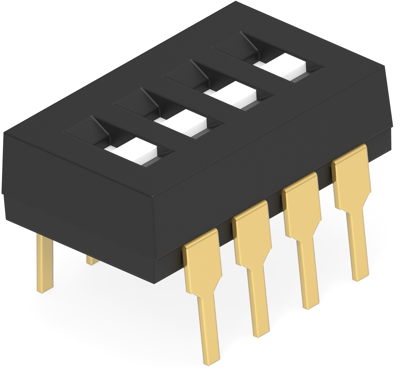

1825002-5 Alcoswitch Slide Switches and Coding Switches Image 2

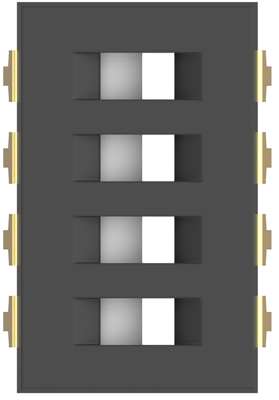

1825002-5 Alcoswitch Slide Switches and Coding Switches Image 3

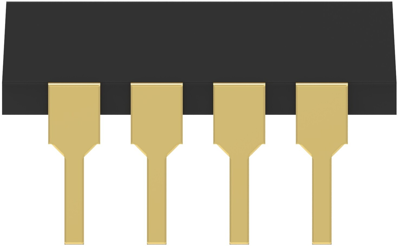

1825002-5 Alcoswitch Slide Switches and Coding Switches Image 4

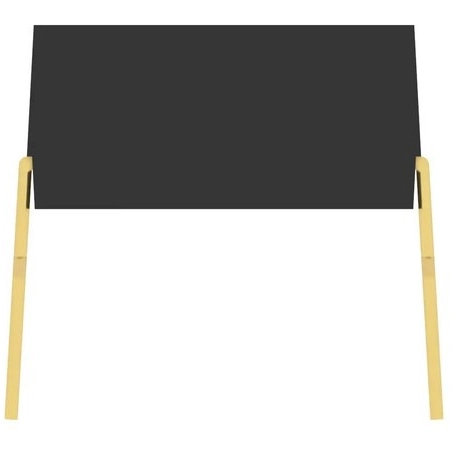

1825002-5 Alcoswitch Slide Switches and Coding Switches Image 5
Image may differ
Unit Price (€ / pc.)
1.1662 € *
Available: 12 pcs.
Leadtime: On Request **
Total Price:
1.17 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1662 €
10 pcs.
1.0710 €
50 pcs.
0.9758 €
100 pcs.
0.8806 €
*incl. VAT plus shipping costs
**Subject to prior sale

Coding DIP switches, type TE Connectivity/Alcoswitch ADE../ADF../ADP.

With PCB or SMD terminals; Switching action: ON-OFF. Breaking capacity: max. 0.4 VA/20 VDC. Contact resistance: max. 50 mohm. Insulation resistance: min. 100 Mohm at 100 VDC. Dielectric strength: 500 VAC. Operating temperatures: –30 to +85 °C. Actuating force: max. 1000 g.

PCB connections for top actuation with flush sliders, type ADF.

Technical attributes (type, number of switches, length): 0-1825002-5, 4 switches, L 12.14 mm

Technical specifications
Connection PCB pin
Version DIP switche
Design straight
Actuation on top
contact surface gold-plated
Pin number 4 pole
Grid 2.54 mm
Breaking capacity 1 A/5 VDC
Shift position Off-On
Logistics
Country of origin TH
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
