1825014-2 | Alcoswitch

Slide switch, On-Off-On, 2 pole, angled, 0.4 A/20 VDC, 1825014-2

Order No.: 19G1282
EAN: 4099889204803
MPN:
1825014-2
TSD21EEGRA04
Alcoswitch

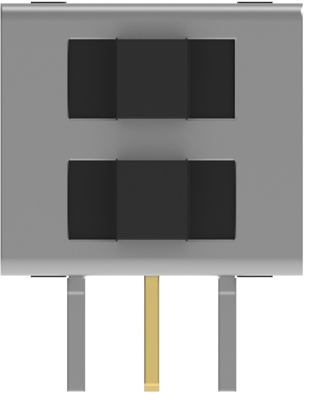

1825014-2 Alcoswitch Slide Switches and Coding Switches Image 1

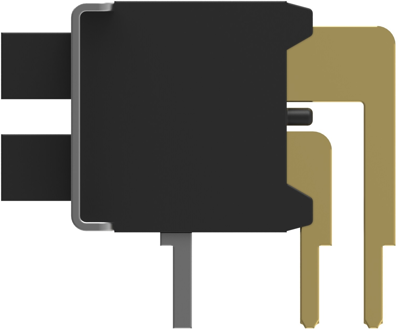

1825014-2 Alcoswitch Slide Switches and Coding Switches Image 2

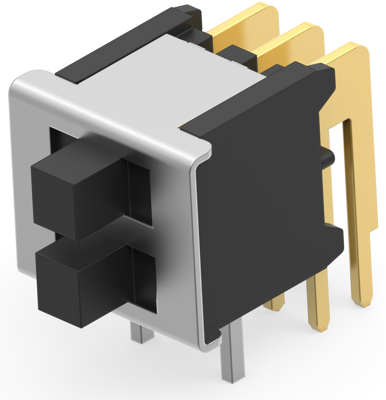

1825014-2 Alcoswitch Slide Switches and Coding Switches Image 3

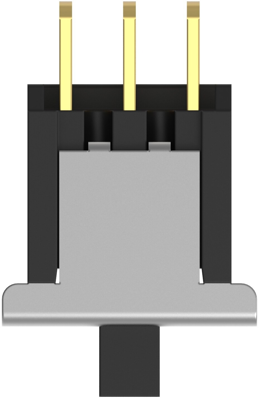

1825014-2 Alcoswitch Slide Switches and Coding Switches Image 4

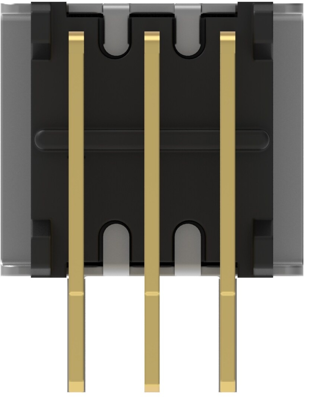

1825014-2 Alcoswitch Slide Switches and Coding Switches Image 5
Image may differ
Unit Price (€ / pc.)
51.3485 € *
Available: 0 pcs.
Available in 5 Days: 23 pcs.
Leadtime: 70 Weeks **
Total Price:
51.35 € *
Price list
Quantity
Price per unit*
2 pcs.
51.3485 €
9 pcs.
50.3965 €
*incl. VAT plus shipping costs
**Subject to prior sale

Slide Switch, 1825014-2, Alcoswitch

Terminal Configuration: Standard, Actuator Style: Extended Dual, Side, Terminals Connected: 1-2, 4-5, Configuration (Pole-Throw): Single Pole - Double Throw, Number of Actuators: Dual, Number of Slide Switch Positions: 2, Operating Function: On Off On, Slide Switch Voltage Rating: 20 VDC, Actuator Travel: 3 mm, Actuator Material: Polyester, Actuator Color: Black, Contact Base Material: Copper Alloy, Slide Switch Contact Current Rating: .4 A, Switch Contact Plating Material: Gold, Termination Type: PC, PCB Mount Retention Type: Extended, Slide Switch Mounting Angle: Right Angle, Slide Switch Mounting Type: Through Hole, Actuator Length: 2.7 mm, Stamped Marking: With, UL Flammability Rating: UL 94V-0

Technical specifications
Connection PCB pin
Version slide switch
Design angled
Actuation lateral
contact surface gold-plated
Pin number 2 pole
Grid 2.54 mm
Breaking capacity 0.4 A/20 VDC
Shift position On-Off-On
Logistics
Country of origin TH
Customs tariff number 85365019
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
