1825057-5 | Alcoswitch

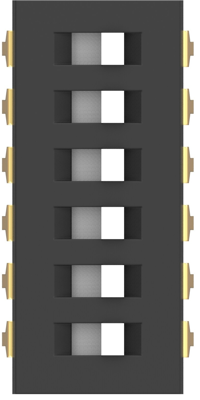

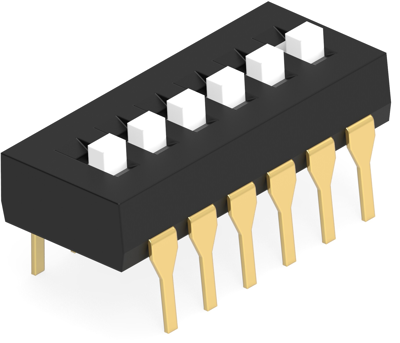

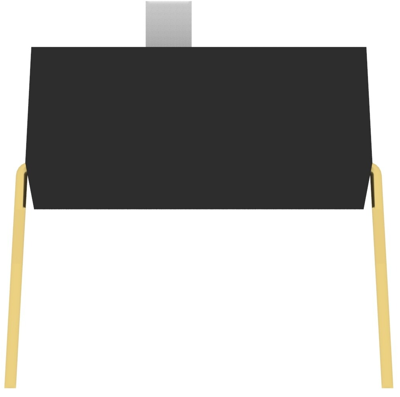

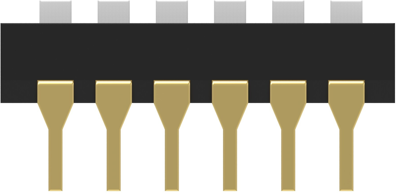

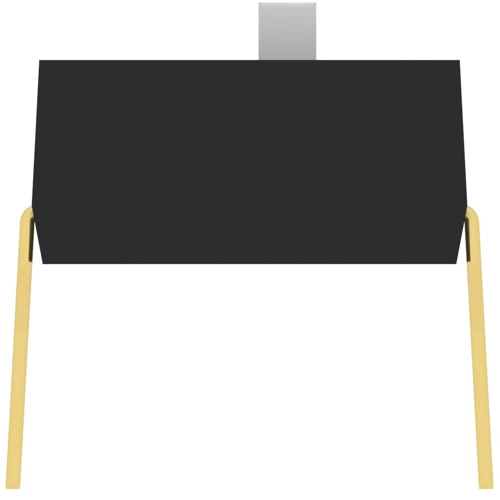

DIP switche, Off-On, 6 pole, straight, 1 A/5 VDC, 1825057-5
Unit Price (€ / pc.)
1.4280 € *
Available: 133 pcs.
Leadtime: On Request **
Total Price:
1.43 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4280 €
25 pcs.
1.2138 €
100 pcs.
1.1305 €
250 pcs.
1.0710 €
1000 pcs.
0.9758 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coding DIP switches, type TE Connectivity/Alcoswitch ADE../ADF../ADP.
With PCB or SMD terminals; Switching action: ON-OFF. Breaking capacity: max. 0.4 VA/20 VDC. Contact resistance: max. 50 mohm. Insulation resistance: min. 100 Mohm at 100 VDC. Dielectric strength: 500 VAC. Operating temperatures: –30 to +85 °C. Actuating force: max. 1000 g.
PCB connections for top actuation with protruding slides, type ADE.
Technical attributes (type, number of switches, length): 0-1825057-5, 6 switches, L 17.22 mm
Technical specifications
| Connection | PCB pin | |
| Version | DIP switche | |
| Design | straight | |
| Actuation | on top | |
| contact surface | gold-plated | |
| Pin number | 6 pole | |
| Grid | 2.54 mm | |
| Breaking capacity | 1 A/5 VDC | |
| Shift position | Off-On |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
