1825057-7 | Alcoswitch

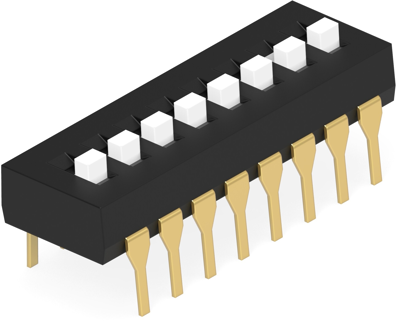

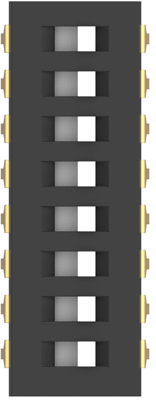

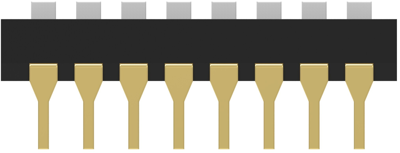

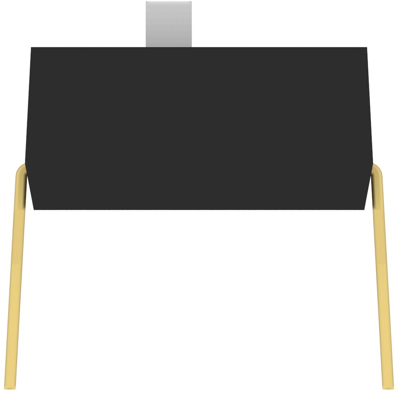

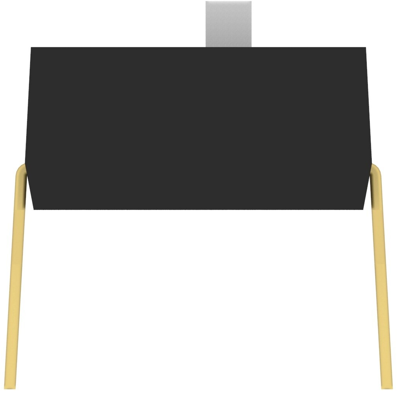

DIP switche, Off-On, 8 pole, straight, 1 A/5 VDC, 1825057-7
Unit Price (€ / pc.)
1.0710 € *
Available: 112 pcs.
Available in 5 Days: 11,200 pcs.
Leadtime: 20 Weeks **
Total Price:
1.07 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0710 €
20 pcs.
0.9163 €
100 pcs.
0.8330 €
260 pcs.
0.7854 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coding DIP switches, type TE Connectivity/Alcoswitch ADE../ADF../ADP.
With PCB or SMD terminals; Switching action: ON-OFF. Breaking capacity: max. 0.4 VA/20 VDC. Contact resistance: max. 50 mohm. Insulation resistance: min. 100 Mohm at 100 VDC. Dielectric strength: 500 VAC. Operating temperatures: –30 to +85 °C. Actuating force: max. 1000 g.
PCB connections for top actuation with protruding slides, type ADE.
Technical attributes (type, number of switches, length): 0-1825057-7, 8 switches, L 22.30 mm
Technical specifications
| Connection | Leiterplattenstift | |
| Version | DIP-Schalter | |
| Design | gerade | |
| Actuation | oben | |
| contact surface | vergoldet | |
| Pin number | 8-polig | |
| Grid | 2.54 mm | |
| Breaking capacity | 1 A/5 VDC | |
| Shift position | Aus-Ein |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85365080 |
| Original Packaging | Stange mit 20 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
