1825194-1 | Alcoswitch

Slide switch, On-On-On, 1 pole, straight, 300 mA/125 VAC, 1825194-1

Order No.: 19G1252
EAN: 4099889204681
MPN:
1825194-1
MSSA135004
Alcoswitch

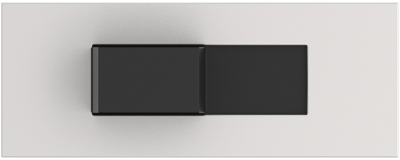

1825194-1 Alcoswitch Slide Switches and Coding Switches Image 1

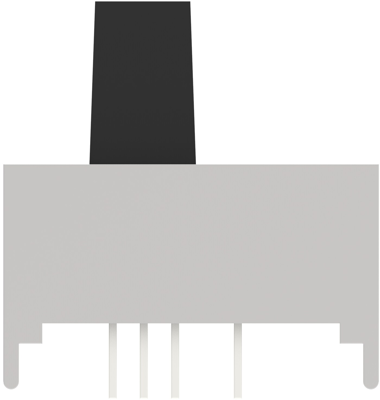

1825194-1 Alcoswitch Slide Switches and Coding Switches Image 2

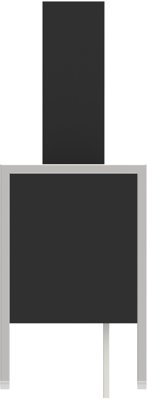

1825194-1 Alcoswitch Slide Switches and Coding Switches Image 3

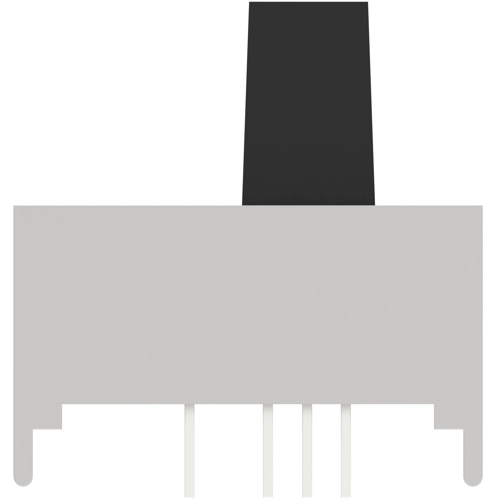

1825194-1 Alcoswitch Slide Switches and Coding Switches Image 4
1825194-1 Alcoswitch Slide Switches and Coding Switches Image 5
Image may differ
Unit Price (€ / pc.)
19.8611 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
19.86 € *
Price list
Quantity
Price per unit*
1 pcs.
19.8611 €
10 pcs.
18.2665 €
25 pcs.
16.4458 €
50 pcs.
14.8036 €
*incl. VAT plus shipping costs
**Subject to prior sale

Slide Switch, 1825194-1, Alcoswitch

Terminal Configuration: Standard, Actuator Style: Extended, Top, Terminals Connected: 1-3, Configuration (Pole-Throw): Single Pole - Three Throw, Number of Actuators: Single, Number of Slide Switch Positions: 3, Operating Function: On On On, Slide Switch Voltage Rating: 125 VAC, Actuator Travel: 2 mm, Actuator Material: Nylon, Actuator Color: Black, Contact Base Material: Copper Alloy, Slide Switch Contact Current Rating: .3 A, Switch Contact Plating Material: Silver, Termination Type: PC, PCB Mount Retention Type: Guide Post, Slide Switch Mounting Angle: Vertical, Slide Switch Mounting Type: Through Hole, Actuator Length: 10.2 mm, Stamped Marking: With, UL Flammability Rating: UL 94V-0, Packaging Method: Tray

Technical specifications
Anschluss Leiterplattenstift
Ausführung Schiebeschalter
Bauform gerade
Betätigung oben
Kontaktoberfläche versilbert
Polzahl 1-polig
Schaltleistung 300 mA/125 VAC
Schaltstellung Ein-Ein-Ein
Logistics
Ursprungsland TW
Zolltarifnummer 85365080
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
