1825255-1 | Alcoswitch

Slide switch, On-On, 1 pole, straight, 300 mA/125 VAC, 1825255-1

Order No.: 19G1221
EAN: 4099889204513
MPN:
1825255-1
MHS12204

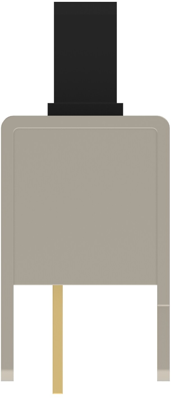

1825255-1 Alcoswitch Slide Switches and Coding Switches Image 1

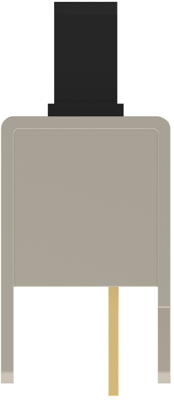

1825255-1 Alcoswitch Slide Switches and Coding Switches Image 2

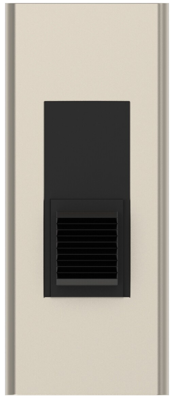

1825255-1 Alcoswitch Slide Switches and Coding Switches Image 3

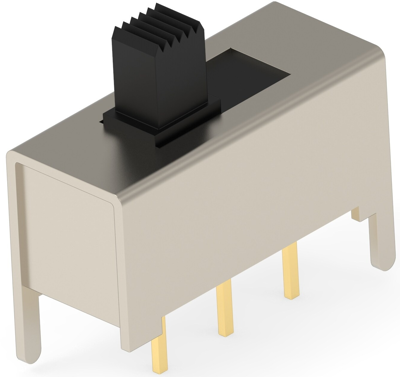

1825255-1 Alcoswitch Slide Switches and Coding Switches Image 4

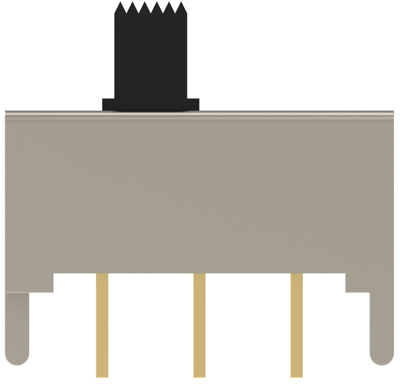

1825255-1 Alcoswitch Slide Switches and Coding Switches Image 5
Image may differ
Unit Price (€ / pc.)
1.3447 € *
Available: 0 pcs.
Available in 5 Days: 93 pcs.
Leadtime: 16 Weeks **
Total Price:
1.34 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3447 €
10 pcs.
1.2257 €
50 pcs.
1.1067 €
100 pcs.
0.9877 €
*incl. VAT plus shipping costs
**Subject to prior sale

Slide Switch, 1825255-1, Alcoswitch

Terminal Configuration: Standard, Actuator Style: Top, Terminals Connected: 2-1, Configuration (Pole-Throw): Single Pole - Double Throw, Number of Actuators: Single, Number of Slide Switch Positions: 2, Operating Function: On None On, Slide Switch Voltage Rating: 125 VAC, Actuator Travel: 4 mm, Actuator Material: POM, Actuator Color: Black, Contact Base Material: Copper Alloy, Slide Switch Contact Current Rating: .3 A, Switch Contact Plating Material: Silver, Termination Type: PC, PCB Mount Retention Type: Guide Post, Slide Switch Mounting Angle: Vertical, Slide Switch Mounting Type: Through Hole, Actuator Length: 4.5 mm, Stamped Marking: With, UL Flammability Rating: UL 94-HB, Packaging Method: Tray

Technical specifications
Connection Leiterplattenstift
Version Schiebeschalter
Design gerade
Actuation oben
contact surface versilbert
Pin number 1-polig
Grid 4 mm
Breaking capacity 300 mA/125 VAC
Shift position Ein-Ein
Logistics
Country of origin TW
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
