1825255-8 | Alcoswitch

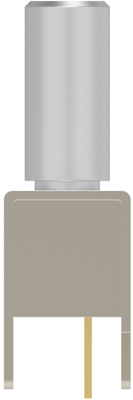

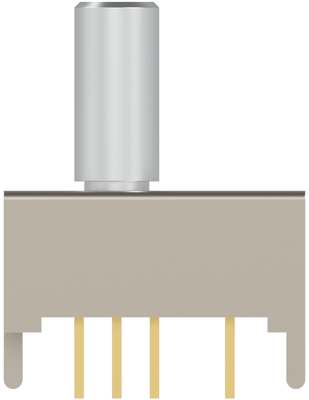

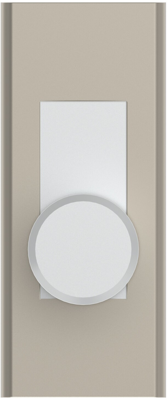

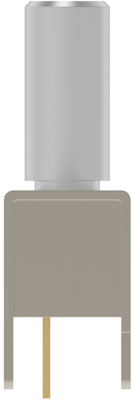

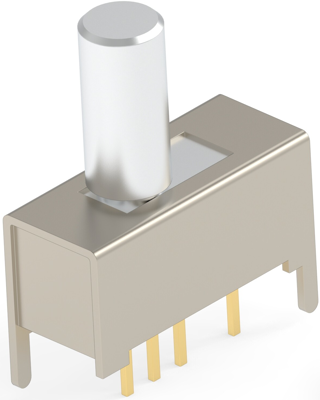

Slide switch, On-On-On, 1 pole, straight, 0.4 A/20 VDC, 1825255-8
Order No.: 19G1224
EAN: 4099889204537
MPN:
1825255-8
MHS133G04
Unit Price (€ / pc.)
0.5355 € *
Available: 127 pcs.
Leadtime: On Request **
Slide Switch, 1825255-8, Alcoswitch
Terminal Configuration: Standard, Actuator Style: Top, Terminals Connected: 2-1, Configuration (Pole-Throw): Single Pole - Three Throw, Number of Actuators: Single, Number of Slide Switch Positions: 3, Operating Function: On On On, Slide Switch Voltage Rating: 20 VDC, Actuator Travel: 2 mm, Actuator Material: POM, Actuator Color: Black, Contact Base Material: Copper Alloy, Slide Switch Contact Current Rating: .4 A, Switch Contact Plating Material: Gold, Termination Type: PC, PCB Mount Retention Type: Guide Post, Slide Switch Mounting Angle: Vertical, Slide Switch Mounting Type: Through Hole, Width: 6.2 mm, Stamped Marking: With, UL Flammability Rating: UL 94-HB, Packaging Method: Tray
Technical specifications
| Connection | PCB pin | |
| Version | slide switch | |
| Design | straight | |
| Actuation | on top | |
| contact surface | gold-plated | |
| Pin number | 1 pole | |
| Breaking capacity | 0.4 A/20 VDC | |
| Shift position | On-On-On |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
