1825257-2 | Alcoswitch

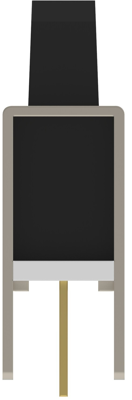

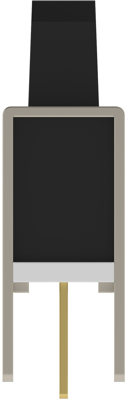

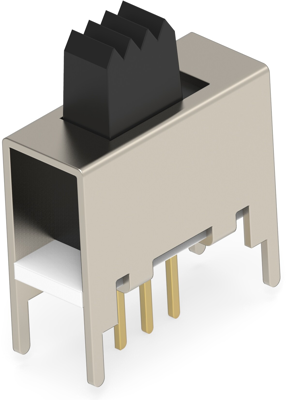

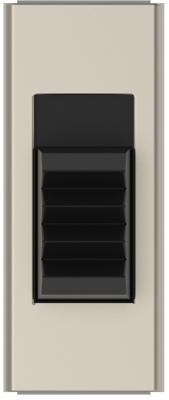

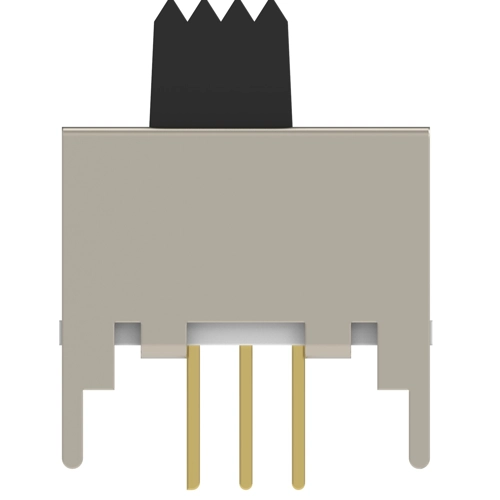

Slide switch, On-On, 1 pole, straight, 0.4 A/20 VDC, 1825257-2
Order No.: 19G1235
EAN: 4099889204568
MPN:
1825257-2
MSS1200G04
Unit Price (€ / pc.)
3.7961 € *
Available: 35 pcs.
Leadtime: On Request **
Total Price:
3.80 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7961 €
10 pcs.
3.4867 €
50 pcs.
3.1773 €
100 pcs.
2.8560 €
*incl. VAT plus shipping costs
**Subject to prior sale
Slide Switch, 1825257-2, Alcoswitch
Terminal Configuration: Standard, Actuator Style: Side, Terminals Connected: 2-1, Configuration (Pole-Throw): Single Pole - Double Throw, Number of Actuators: Single, Number of Slide Switch Positions: 2, Operating Function: On On, Slide Switch Voltage Rating: 20 VDC, Actuator Travel: 2 mm, Actuator Material: POM, Actuator Color: Black, Contact Base Material: Copper Alloy, Slide Switch Contact Current Rating: .4 A, Switch Contact Plating Material: Gold, Termination Type: PC, PCB Mount Retention Type: Guide Post, Slide Switch Mounting Angle: Vertical, Slide Switch Mounting Type: Through Hole, Actuator Length: 5 mm, Stamped Marking: With, UL Flammability Rating: UL 94-HB, Packaging Method: Tray
Technical specifications
| Connection | PCB pin | |
| Version | slide switch | |
| Design | straight | |
| Actuation | lateral | |
| contact surface | gold-plated | |
| Pin number | 1 pole | |
| Grid | 2 mm | |
| Breaking capacity | 0.4 A/20 VDC | |
| Shift position | On-On |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
