1825289-8 | Alcoswitch
Slide switch, On-On-On, 2 pole, straight, 300 mA/125 VAC, 1825289-8
Order No.: 19G1230
EAN: 4099889204551
MPN:
1825289-8
MHS23304
Unit Price (€ / pc.)
2.9631 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
2.96 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9631 €
10 pcs.
2.6894 €
50 pcs.
2.4157 €
100 pcs.
2.1777 €
*incl. VAT plus shipping costs
**Subject to prior sale

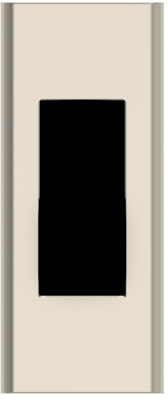

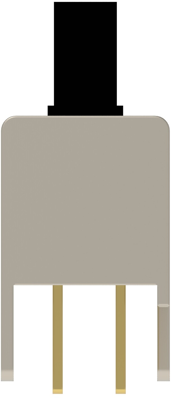

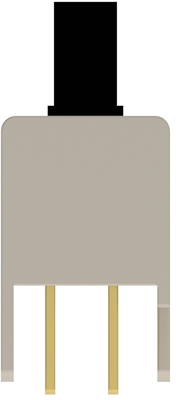

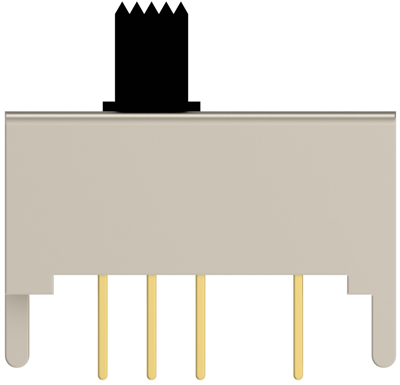

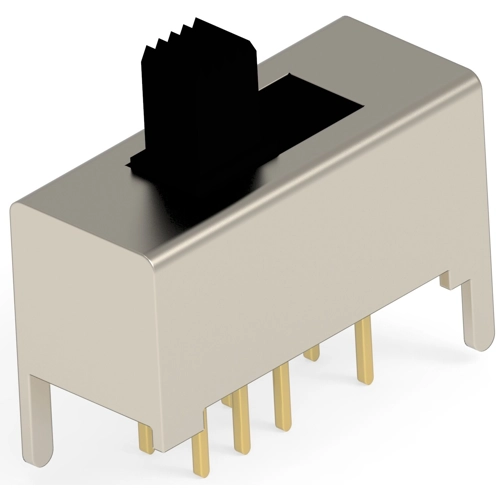

Slide Switch, 1825289-8, Alcoswitch
Terminal Configuration: Standard, Actuator Style: Lever, Terminals Connected: 1-2, 5-6, Configuration (Pole-Throw): Double Pole - Three Throw, Number of Actuators: Single, Number of Slide Switch Positions: 3, Operating Function: On On On, Slide Switch Voltage Rating: 125 VAC, Actuator Travel: 2 mm, Actuator Material: Thermoplastic, Actuator Color: Black, Contact Base Material: Copper Alloy, Slide Switch Contact Current Rating: .3 A, Switch Contact Plating Material: Silver, Termination Type: PC, PCB Mount Retention Type: Guide Post, Slide Switch Mounting Angle: Vertical, Slide Switch Mounting Type: Through Hole, Width: 6.2 mm, Stamped Marking: With, UL Flammability Rating: UL 94-HB, Packaging Method: Tray
Technical specifications
| Connection | PCB pin | |
| Version | slide switch | |
| Design | straight | |
| Actuation | on top | |
| contact surface | silver-plated | |
| Pin number | 2 pole | |
| Grid | 4 mm | |
| Breaking capacity | 300 mA/125 VAC | |
| Shift position | On-On-On |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
