2-2319847-6 | Alcoswitch
DIP switche, Off-On, 5 pole, straight, 0.025 A/24 VDC, 2-2319847-6
Unit Price (€ / pc.)
1.4518 € *
Available: 0 pcs.
Available in 5 Days: 1,800 pcs.
Leadtime: 14 Weeks **
Total Price:
1,306.62 € *
Price list
Quantity
Price per unit*
900 pcs.
1.4518 €
1800 pcs.
1.3923 €
*incl. VAT plus shipping costs
**Subject to prior sale

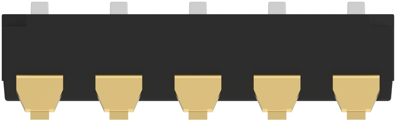

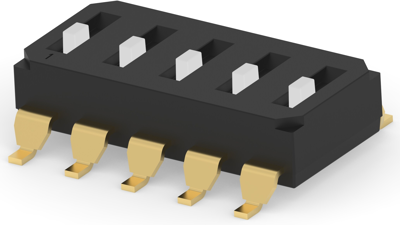

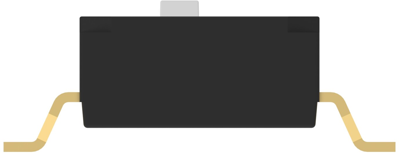

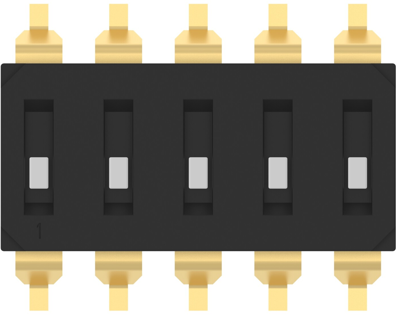

Switch, 2-2319847-6, Alcoswitch
The 2-2319847-6 is designed for space-saving and streamlined manufacturing with full Surface mount products. The end-stackable design saves space on the PCB and allows for large position counts without sacrificing centerline spacing.
Features
- Raised actuators for design flexibility
- Gold contact plating for high reliability and corrosion resistance
Applications
- Industrial and Automated Control Boards
- Fire and security systems
- Thermostats
- Elevator/Escalator
- Telecommunication Devices
Technical specifications
| Connection | Gull-wing | |
| Version | DIP-Schalter | |
| Design | gerade | |
| Actuation | oben | |
| contact surface | vergoldet | |
| Pin number | 5-polig | |
| Grid | 2.54 mm | |
| Breaking capacity | 0,025 A/24 VDC | |
| Shift position | Aus-Ein |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
