3-5435640-5 | Alcoswitch

DIP switche, Off-On, 4 pole, straight, 1 A/40 VDC, 3-5435640-5

Order No.: 17G663
EAN: 4099889204216
MPN:
3-5435640-5

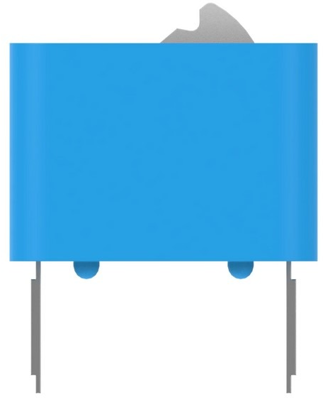

3-5435640-5 Alcoswitch Slide Switches and Coding Switches Image 1

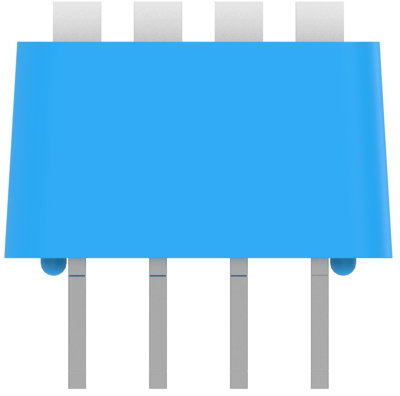

3-5435640-5 Alcoswitch Slide Switches and Coding Switches Image 2

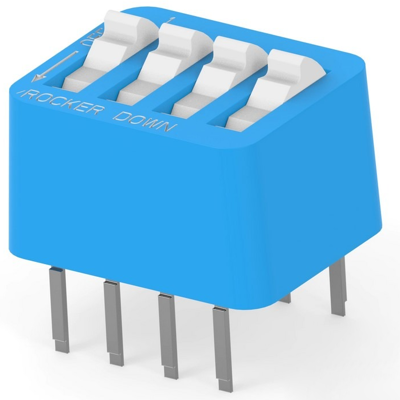

3-5435640-5 Alcoswitch Slide Switches and Coding Switches Image 3

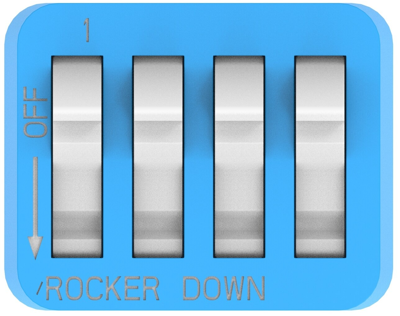

3-5435640-5 Alcoswitch Slide Switches and Coding Switches Image 4

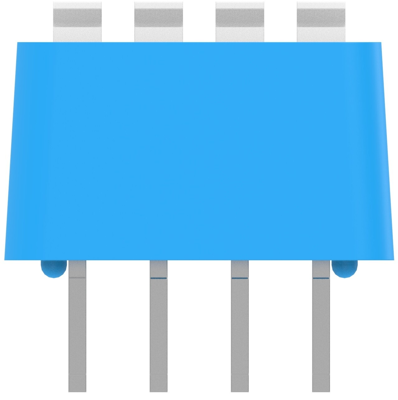

3-5435640-5 Alcoswitch Slide Switches and Coding Switches Image 5
Image may differ
Unit Price (€ / pc.)
1.7493 € *
Available: 0 pcs.
Available in 5 Days: 10,718 pcs.
Leadtime: 28 Weeks **
Total Price:
262.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
150 pcs.
1.7493 €

Coding rocker switches, type TE Connectivity/AMP 3-54356.

With open rockers. Max; rated current/rated voltage: not switched 1.0 A/40 VDC, switched 60/15 mA at 5.0/24 VDC. Contact resistance (towards the end/start): 100/50 mohm, at 50 mV open-circuit, 10 mA. Dielectric strength: min. 500 VDC. Capacitance: 5.0 pF. Operating temperatures: –15 to +85 °C. Housing and switching element: polyester, thermoplastic to UL 94 VDC0. Contacts: copper alloy, gold-plated on nickel. Housing: blue. Rockers and labeling: white.

Technical attributes (type, number of switches, dimension A): 3-5435640-5, 4 switches, A 12.19 mm

Technical specifications
Connection Leiterplattenstift
Version DIP-Schalter
Design gerade
Actuation oben
contact surface vergoldet
Pin number 4-polig
Grid 2.54 mm
Breaking capacity 1 A/40 VDC
Shift position Aus-Ein
Logistics
Country of origin TH
Customs tariff number 85365080
Original Packaging Stange mit 25 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
