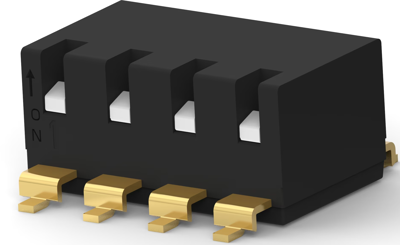

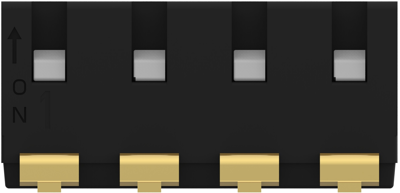

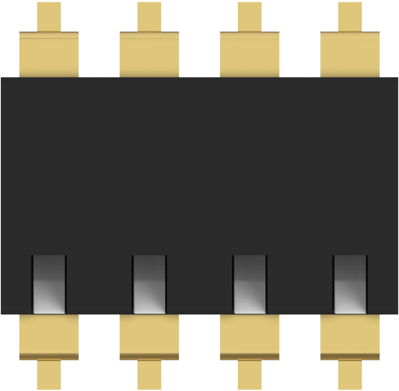

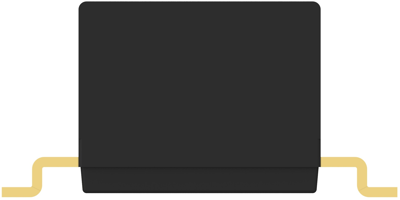

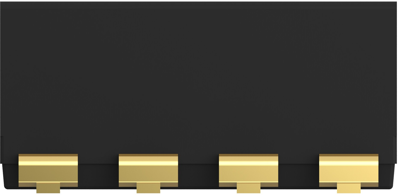

5-2319764-7 | Alcoswitch
DIP switche, 4 pole, straight, 0.025 A/24 VDC, 5-2319764-7
Unit Price (€ / pc.)
2.2729 € *
Available: 0 pcs.
Available in 5 Days: 1,400 pcs.
Leadtime: 16 Weeks **
Total Price:
2.27 € *
Price list
Quantity
Price per unit*
40 pcs.
2.2729 €
200 pcs.
2.2253 €
*incl. VAT plus shipping costs
**Subject to prior sale
Switch, 5-2319764-7, Alcoswitch
The 5-2319764-7 is designed for space-saving and streamlined manufacturing with full Surface mount products.
Features
- Gold contact plating for high reliability and corrosion resistance
- Piano-style actuators for edge of PCB mounting of switch
Applications
- Industrial and Automated Control Boards
- Fire and security systems
- Thermostats
- Elevator/Escalator
- Telecommunication Devices
Technical specifications
| Connection | gull-wing | |
| Version | DIP switche | |
| Design | straight | |
| Actuation | lateral | |
| contact surface | gold-plated | |
| Pin number | 4 pole | |
| Grid | 2.54 mm | |
| Breaking capacity | 0.025 A/24 VDC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
