5435802-9 | Alcoswitch

DIP switche, Off-On, 8 pole, angled, 1.5 A/50 VDC, 5435802-9

Order No.: 19G1612
EAN: 4099889205169
MPN:
5435802-9
Alcoswitch

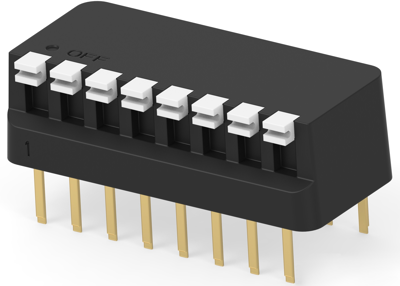

5435802-9 Alcoswitch Slide Switches and Coding Switches Image 1

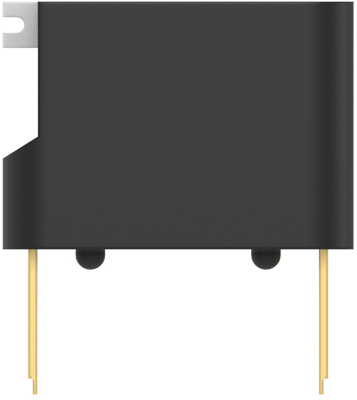

5435802-9 Alcoswitch Slide Switches and Coding Switches Image 2

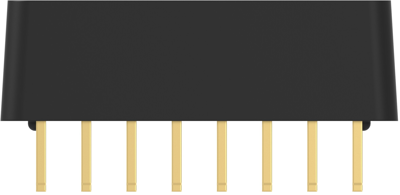

5435802-9 Alcoswitch Slide Switches and Coding Switches Image 3

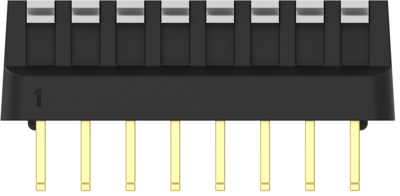

5435802-9 Alcoswitch Slide Switches and Coding Switches Image 4

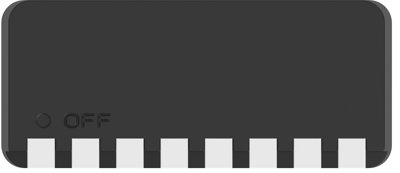

5435802-9 Alcoswitch Slide Switches and Coding Switches Image 5
Image may differ
Unit Price (€ / pc.)
3.4510 € *
Available: 0 pcs.
Available in 5 Days: 1,036 pcs.
Leadtime: 25 Weeks **
Total Price:
3.45 € *
Price list
Quantity
Price per unit*
28 pcs.
3.4510 €
154 pcs.
2.8560 €
*incl. VAT plus shipping costs
**Subject to prior sale

DIP Switch, 5435802-9, Alcoswitch

DIP & SIP Switch Product Type: Switch, Sealed DIP & SIP Switch: Yes, DIP & SIP Switch Type: DIP, Actuator Style: Piano (Side Actuated), Number of Positions: 8, Number of Switches: 8, Configuration (Pole-Throw): Single Pole - Single Throw, DIP & SIP Switch Voltage Rating: 50 VDC, Seal Type: Strippable, Solder Tail Contact Plating: Tin, DIP & SIP Switch Contact Mating Area Plating Material: Gold, Auto-Insertable: No, DIP & SIP Switch Contact Current Rating: 1.5 A, Contact Base Material: Copper Alloy, Termination Post Length: 3.56 mm, Mounting Angle: Vertical, DIP & SIP Switch Mounting Type: Through Hole, Low Profile: Yes, DIP & SIP Switch Housing Color: Black, DIP & SIP Switch Housing Material: Polyester GF, DIP & SIP Switch Centerline: 2.54 mm, Height: 7.36 mm, Operating Temperature Range: -55 – 105 °C, UL Flammability Rating: UL 94V-0, Packaging Quantity: 14

Technical specifications
Connection PCB pin
Version DIP switche
Design angled
Actuation lateral
contact surface gold-plated
Pin number 8 pole
Grid 2.54 mm
Breaking capacity 1.5 A/50 VDC
Shift position Off-On
Logistics
Country of origin IN
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
