147873-1 | Alcoswitch

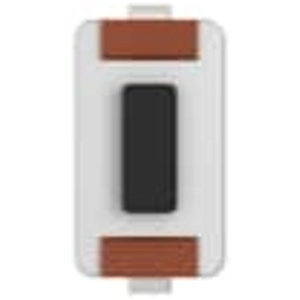

Short-stroke pushbutton, Form A (N/O), 50 mA/24 VDC, unlit , actuator (black, L 1.5 mm), 1.76 N, SMD, 147873-1
Order No.: 19G1371
EAN: 4099889207552
MPN:
147873-1
Unit Price (€ / pc.)
0.2559 € *
Available: 0 pcs.
Available in 5 Days: 32,400 pcs.
Leadtime: 23 Weeks **
Total Price:
0.26 € *
Price list
Quantity
Price per unit*
1800 pcs.
0.2559 €
3600 pcs.
0.2118 €
*incl. VAT plus shipping costs
**Subject to prior sale
Tactile Switch, 147873-1, Alcoswitch
Illuminated: With, Actuator Style: Rectangular, Dust Proof: No, Snap Action: Without, Operating Function: NO, Support Bracket: Without, Configuration (Pole-Throw): Single Pole - Single Throw, Number of Actuators: 1, Tactile Switch Voltage Rating: 24 VDC, Actuator Material: PPS, Actuator Color: Black, Contact Base Material: Copper Alloy, Switch Contact Plating Material: Silver, Tactile Switch Contact Current Rating: 50 mA, Termination Type: Printed Circuit Board, Tactile Switch Mounting Type: Surface Mount, Tactile Switch Mounting Angle: Vertical, Low Profile: With, Process Sealed: No, Actuator Length: 1.5 mm, Temperature Rating: -35 – 85 °C, Packaging Method: Tape & Reel
Technical specifications
| Connection | SMD | |
| illuminated | No | |
| actuating force | 1.76 N | |
| Width | 3.5 mm | |
| Actuator colour | black | |
| Height | 5 mm | |
| Contact material | silver-plated | |
| Length | 6 mm | |
| Latching switching function | Form A (N/O) | |
| Breaking capacity | 50 mA/24 VDC | |
| actuator length | 1.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
