1825967-2 | Alcoswitch

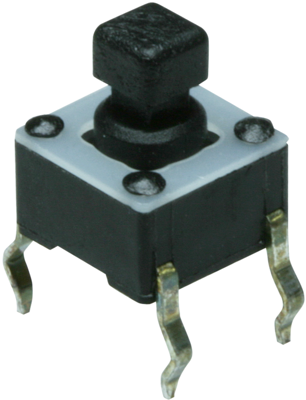

Short-stroke pushbutton, Form A (N/O), 50 mA/24 VDC, unlit , actuator (black, L 2.89 mm), 1.56 N, THT, 1825967-2
Unit Price (€ / pc.)
0.1345 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
In-line pushbutton switches, type TE Connectivity/Alcoswitch FSMCDH/FSMCDAH.
Horizontal, top actuation with square plunger; Contact type: NO. Breaking capacity: max. 50 mA/24 VDC. Contact resistance: max. 50 mohm. Insulation resistance: min. 100 Mohm. Actuating force: 160 (±50) g. Contacts: copper alloy, silver-plated. Connections: copper alloy, silver-plated on nickel primer. Housing: nylon 6/6, black. Operating temperatures: –35 to +85 °C.
Technical attributes (type, actuator dimension (A), actuator color): 0-1825967-2, A 2.8 mm, black
Technical specifications
| Anschluss | THT | |
| beleuchtet | No | |
| Betätigungskraft | 1,56 N | |
| Breite | 6 mm | |
| Farbe Betätiger | schwarz | |
| Höhe | 3.6 mm | |
| Kontaktmaterial | versilbert | |
| Länge | 6 mm | |
| Schaltfunktion | Schließer | |
| Schaltleistung | 50 mA/24 VDC | |
| Betätigerlänge | 2.89 mm |
Download
Logistics
| Ursprungsland | GB |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
