3-1825910-1 | Alcoswitch

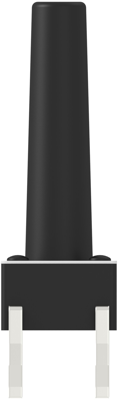

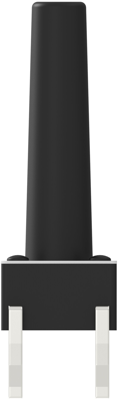

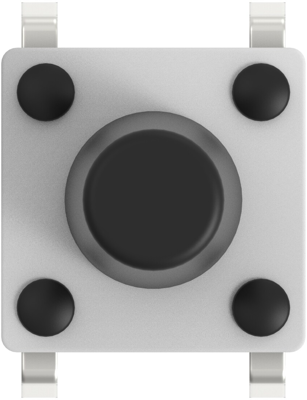

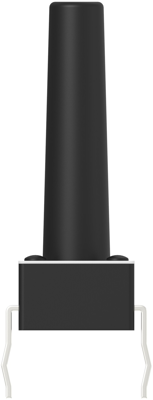

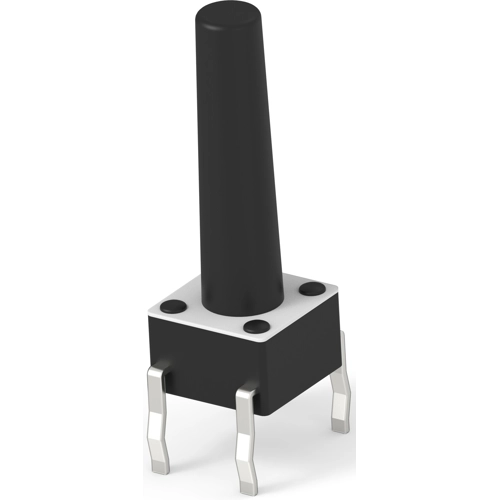

Short-stroke pushbutton, 1 Form A (N/O), 50 mA/24 VDC, unlit , actuator (black, L 13.4 mm), 1.56 N, THT, 3-1825910-1
Unit Price (€ / pc.)
0.1607 € *
Available: 472 pcs.
Leadtime: On Request **
Total Price:
4.02 € *
Price list
Quantity
Price per unit*
25 pcs.
0.1607 €
50 pcs.
0.1476 €
100 pcs.
0.1380 €
500 pcs.
0.1285 €
*incl. VAT plus shipping costs
**Subject to prior sale
In-line pushbutton switch,es, type TE Connectivity/Alcoswitch FSMJH.
Horizontal, top actuation; Contact type: NO. Breaking capacity: max. 50 mA/24 VDC. Contact resistance: max. 100 mohm. Insulation resistance: min. 100 Mohm at 100 VDC. Actuating force: 160 (±50) g. Contacts: copper alloy, silver-plated. Connections: copper alloy, silver-plated on nickel primer. Housing: nylon 6/6, glass fiber-reinforced, black. Operating temperatures: –35 to +85 °C.
Technical attributes (type, actuator height (A), pushbutton height (B), actuator color): 3-1825910-1, A 13.4, B 17 mm, black
Technical specifications
| Connection | THT | |
| illuminated | No | |
| actuating force | 1.56 N | |
| Width | 5.99 mm | |
| Actuator colour | black | |
| Height | 3.61 mm | |
| Contact material | silver-plated | |
| Length | 5.99 mm | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 50 mA/24 VDC | |
| actuator length | 13.4 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
