1-1825138-4 | Alcoswitch

Toggle switch, metal, 2 pole, latching, On-On, 5 A/125 VAC, 28 VDC, silver-plated, 1-1825138-4

Order No.: 19G1840
EAN: 4099889182064
MPN:
1-1825138-4
A201MYZQ04
Series: Gemini A
Alcoswitch

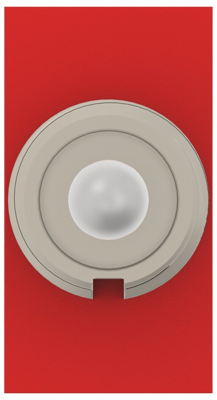

1-1825138-4 Alcoswitch Toggle Switches Image 1

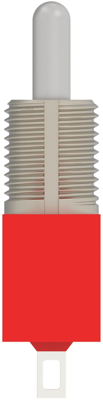

1-1825138-4 Alcoswitch Toggle Switches Image 2

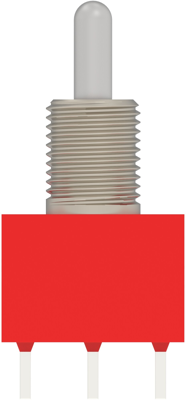

1-1825138-4 Alcoswitch Toggle Switches Image 3

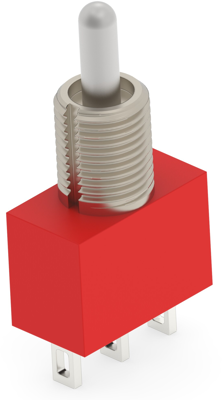

1-1825138-4 Alcoswitch Toggle Switches Image 4
1-1825138-4 Alcoswitch Toggle Switches Image 5
Image may differ
Unit Price (€ / pc.)
3.3320 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.33 € *
Price list
Quantity
Price per unit*
500 pcs.
3.3320 €
1000 pcs.
3.2368 €
2500 pcs.
3.1297 €
*incl. VAT plus shipping costs
**Subject to prior sale

Toggle Switch, 1-1825138-4, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton Short, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Double Pole - Double Throw, Operating Function: On On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 28 VDC, Toggle Switch Voltage Rating: 125 VAC, 28 VDC, Toggle Switch Voltage Rating: 120 VAC, Actuator Finish: Nickel, Bushing Thread Size: 1/4-40, Toggle Switch Seal Type: Terminal Seal (Epoxy), Bushing Style: Threaded, Contact Base Material: Copper, Switch Contact Plating Material: Silver, Toggle Switch Contact Current Rating: 5 A, Termination Type: Wire Lugs, Toggle Switch Mounting Type: Solder, Process Sealed: No, Toggle Length: 5.08 mm, UL Flammability Rating: UL 94V-0

Technical specifications
Connection solder connection
Design vertical
Type of mounting central Mounting
illuminated No
Actuator colour metal
contact surface silver-plated
Pin number 2 pole
Latching switching function latching
Breaking capacity 5 A/125 VAC, 28 VDC
Shift position On-On
Logistics
Country of origin IN
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
