2-1437559-0 | Alcoswitch

Toggle switch, metal, 2 pole, latching, On-Off-On, 6 A/125 VAC, 4 A/28 VDC, gold-plated, 2-1437559-0

Order No.: 19G1934
EAN: 4099889182965
MPN:
2-1437559-0
MTG206P

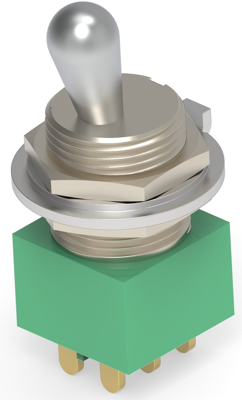

2-1437559-0 Alcoswitch Toggle Switches Image 1

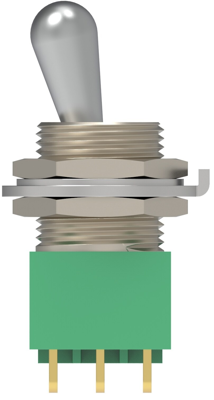

2-1437559-0 Alcoswitch Toggle Switches Image 2

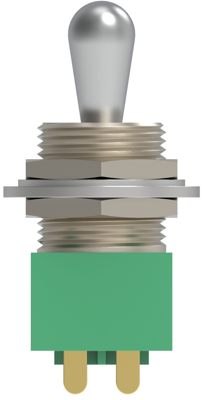

2-1437559-0 Alcoswitch Toggle Switches Image 3

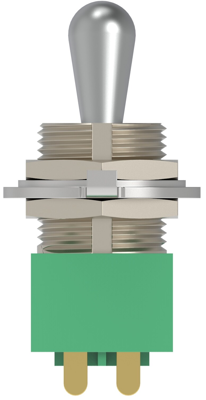

2-1437559-0 Alcoswitch Toggle Switches Image 4

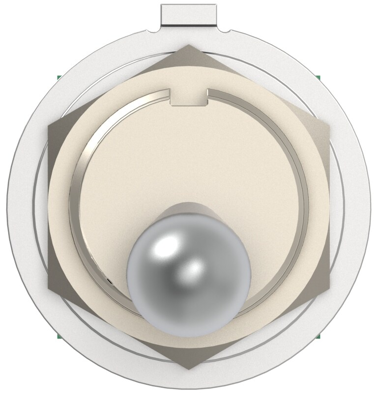

2-1437559-0 Alcoswitch Toggle Switches Image 5
Image may differ
Unit Price (€ / pc.)
19.8135 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
1,981.35 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
19.8135 €

Toggle Switch, 2-1437559-0, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton Short, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Double Pole - Double Throw, Operating Function: On Off On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 28 VDC, Toggle Switch Voltage Rating: 125 VAC, Toggle Switch Voltage Rating: 125 VAC, Actuator Finish: Chrome, Bushing Thread Size: 15/32-32, Toggle Switch Seal Type: Terminal Seal (Insert Molded), Bushing Style: Threaded, Contact Base Material: Copper Alloy, Switch Contact Plating Material: Gold Flash over Silver, Toggle Switch Contact Current Rating: 6 A, Termination Type: Vertical,Wire Lugs, Toggle Switch Mounting Type: Panel, Process Sealed: No, Toggle Length: 11.48 mm, UL Flammability Rating: UL 94V-0, Comment: UL available when ordering - consult factory.

Technical specifications
Connection Lötanschluss
Design stehend
Type of mounting Zentralbefestigung
illuminated No
Actuator colour metall
contact surface vergoldet
Pin number 2-polig
Latching switching function rastend
Breaking capacity 6 A/125 VAC, 4 A/28 VDC
Shift position Ein-Aus-Ein
Logistics
Country of origin CN
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
