2-1825137-4 | Alcoswitch

Toggle switch, metal, 1 pole, groping/latching, (On)-Off-(On), 0.4 VA/20 V AC/DC, gold-plated, 2-1825137-4

Order No.: 19G1813
EAN: 4099889181814
MPN:
2-1825137-4
A105MD9AB04
Series: Gemini A
Alcoswitch

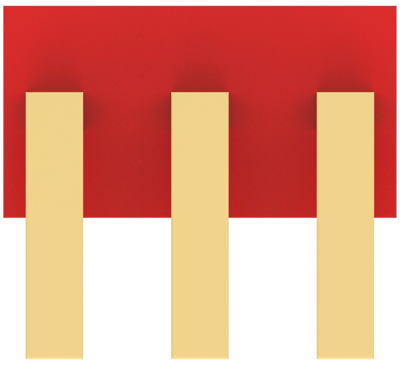

2-1825137-4 Alcoswitch Toggle Switches Image 1

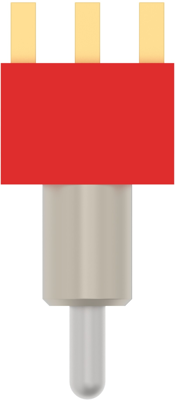

2-1825137-4 Alcoswitch Toggle Switches Image 2

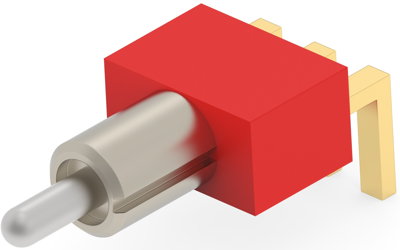

2-1825137-4 Alcoswitch Toggle Switches Image 3

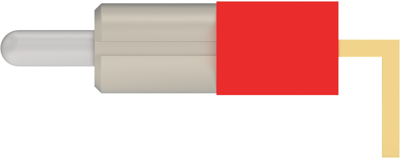

2-1825137-4 Alcoswitch Toggle Switches Image 4
2-1825137-4 Alcoswitch Toggle Switches Image 5
Image may differ
Unit Price (€ / pc.)
4.6886 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.69 € *
Price list
Quantity
Price per unit*
500 pcs.
4.6886 €
1000 pcs.
4.5458 €
2500 pcs.
4.4149 €
*incl. VAT plus shipping costs
**Subject to prior sale

Toggle Switch, 2-1825137-4, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton Short, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Single Pole - Double Throw, Operating Function: (On) Off (On), Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 20 VDC, Toggle Switch Voltage Rating: 20 V, Toggle Switch Voltage Rating: 20 VAC, Actuator Finish: Nickel, Toggle Switch Seal Type: Terminal Seal (Epoxy), Bushing Style: Unthreaded, Contact Base Material: Copper, Switch Contact Plating Material: Gold, Toggle Switch Contact Current Rating: .4 A, Termination Type: Right Angle, Toggle Switch Mounting Type: Through Hole, Process Sealed: No, Toggle Length: 6.86 mm, UL Flammability Rating: UL 94V-1

Technical specifications
Connection PCB connection
Design horizontal
Type of mounting central Mounting
illuminated No
Actuator colour metal
contact surface gold-plated
Pin number 1 pole
Latching switching function groping/latching
Breaking capacity 0.4 VA/20 V AC/DC
Shift position (On)-Off-(On)
Logistics
Country of origin HU
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
