3-1825137-8 | Alcoswitch
Toggle switch, metal, 1 pole, groping/latching, (On)-Off-(On), 0.4 VA/20 V AC/DC, gold-plated, 3-1825137-8
Unit Price (€ / pc.)
4.1055 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.11 € *
Price list
Quantity
Price per unit*
500 pcs.
4.1055 €
1000 pcs.
3.9865 €
2500 pcs.
3.8556 €
*incl. VAT plus shipping costs
**Subject to prior sale

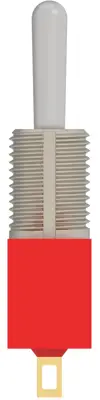

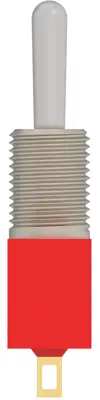

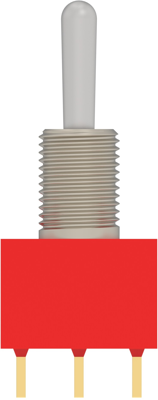

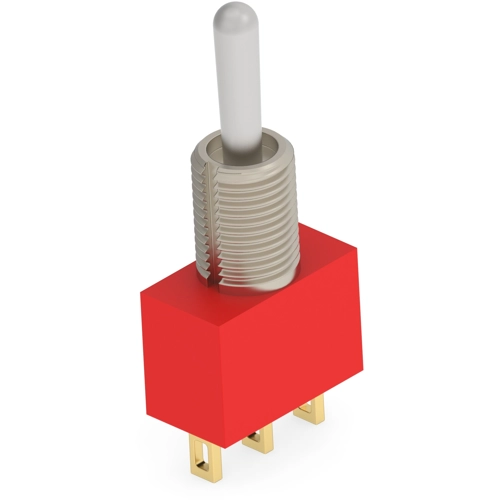

Toggle Switch, 3-1825137-8, Alcoswitch
Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton Long, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Single Pole - Double Throw, Operating Function: (On) Off (On), Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 20 VDC, Toggle Switch Voltage Rating: 20 V, Toggle Switch Voltage Rating: 20 VAC, Actuator Finish: Nickel, Bushing Thread Size: 1/4-40, Toggle Switch Seal Type: Terminal Seal (Epoxy), Bushing Style: Threaded, Contact Base Material: Copper, Switch Contact Plating Material: Gold, Toggle Switch Contact Current Rating: .4 A, Termination Type: Wire Lugs, Toggle Switch Mounting Type: Solder, Process Sealed: No, Toggle Length: 10.4 mm, UL Flammability Rating: UL 94V-1
Technical specifications
| Connection | solder connection | |
| Design | vertical | |
| Type of mounting | central Mounting | |
| illuminated | No | |
| Actuator colour | metal | |
| contact surface | gold-plated | |
| Pin number | 1 pole | |
| Latching switching function | groping/latching | |
| Breaking capacity | 0.4 VA/20 V AC/DC | |
| Shift position | (On)-Off-(On) |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
