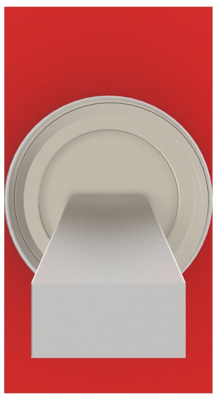

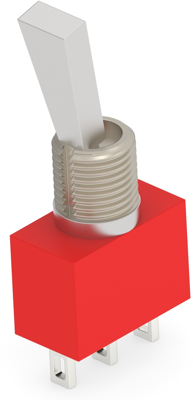

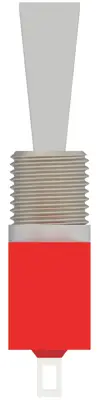

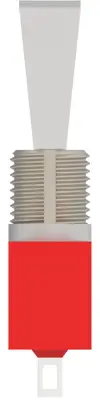

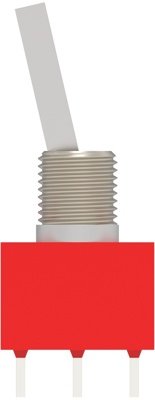

3-1825138-3 | Alcoswitch
Toggle switch, metal, 2 pole, latching/groping, On-(On), 5 A/125 VAC, 28 VDC, silver-plated, 3-1825138-3
Unit Price (€ / pc.)
6.5093 € *
Available: 0 pcs.
Available in 5 Days: 194 pcs.
Leadtime: 29 Weeks **
Total Price:
6.51 € *
Price list
Quantity
Price per unit*
15 pcs.
6.5093 €
80 pcs.
5.2598 €
*incl. VAT plus shipping costs
**Subject to prior sale
Toggle Switch, 3-1825138-3, Alcoswitch
Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Large Flat with Bushing, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Double Pole - Double Throw, Operating Function: On (On), Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 28 VDC, Toggle Switch Voltage Rating: 125 VAC, 28 VDC, Toggle Switch Voltage Rating: 120 VAC, Actuator Finish: Nickel, Bushing Thread Size: 1/4-40 UNS-2A, Toggle Switch Seal Type: Terminal Seal (Epoxy), Bushing Style: Threaded, Contact Base Material: Copper, Switch Contact Plating Material: Silver, Toggle Switch Contact Current Rating: 5 A, Termination Type: Wire Lugs, Toggle Switch Mounting Type: Solder, Process Sealed: No, Toggle Length: 12.32 mm
Technical specifications
| Connection | solder connection | |
| Design | vertical | |
| Type of mounting | central Mounting | |
| illuminated | No | |
| Actuator colour | metal | |
| contact surface | silver-plated | |
| Pin number | 2 pole | |
| Latching switching function | latching/groping | |
| Breaking capacity | 5 A/125 VAC, 28 VDC | |
| Shift position | On-(On) |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
