4-1825139-0 | Alcoswitch

Toggle switch, metal, 2 pole, latching, On-On-On, 5 A/125 VAC, 28 VDC, silver-plated, 4-1825139-0

Order No.: 19G1887
EAN: 4099889182507
MPN:
4-1825139-0
A211T1ZQ04
Series: Gemini A
Alcoswitch

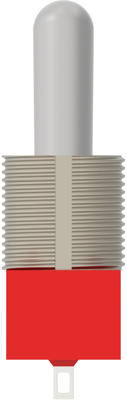

4-1825139-0 Alcoswitch Toggle Switches Image 1

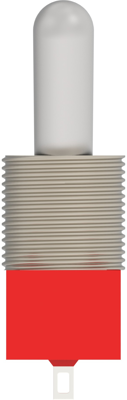

4-1825139-0 Alcoswitch Toggle Switches Image 2

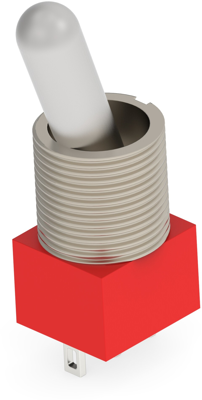

4-1825139-0 Alcoswitch Toggle Switches Image 3

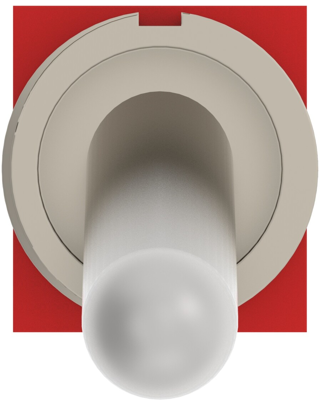

4-1825139-0 Alcoswitch Toggle Switches Image 4

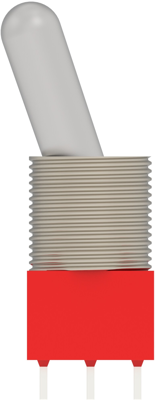

4-1825139-0 Alcoswitch Toggle Switches Image 5
Image may differ
Unit Price (€ / pc.)
5.3550 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.36 € *
Price list
Quantity
Price per unit*
500 pcs.
5.3550 €
1000 pcs.
5.1170 €
2500 pcs.
4.8790 €
5000 pcs.
4.6410 €
10000 pcs.
4.4030 €
*incl. VAT plus shipping costs
**Subject to prior sale

Toggle Switch, 4-1825139-0, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Large with Bushing, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Double Pole - Double Throw, Operating Function: On On On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 28 VDC, Toggle Switch Voltage Rating: 125 VAC, 28 VDC, Toggle Switch Voltage Rating: 120 VAC, Actuator Finish: Nickel, Toggle Switch Seal Type: Terminal Seal (Epoxy), Bushing Style: Unthreaded, Contact Base Material: Copper, Switch Contact Plating Material: Silver, Toggle Switch Contact Current Rating: 5 A, Termination Type: Wire Lugs, Toggle Switch Mounting Type: Solder, Process Sealed: No, Toggle Length: 12.37 mm

Technical specifications
Connection solder connection
Design vertical
Type of mounting central Mounting
illuminated No
Actuator colour metal
contact surface silver-plated
Pin number 2 pole
Latching switching function latching
Breaking capacity 5 A/125 VAC, 28 VDC
Shift position On-On-On
Logistics
Country of origin TW
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
