4-1825139-2 | Alcoswitch

Toggle switch, metal, 2 pole, latching/groping, On-Off-(On), 5 A/125 VAC, 28 VDC, silver-plated, 4-1825139-2

Order No.: 19G1888
EAN: 4099889182514
MPN:
4-1825139-2
A213SYZQ04
Series: Gemini A
Alcoswitch

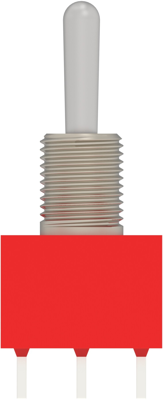

4-1825139-2 Alcoswitch Toggle Switches Image 1

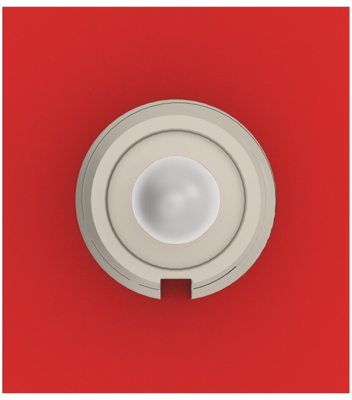

4-1825139-2 Alcoswitch Toggle Switches Image 2

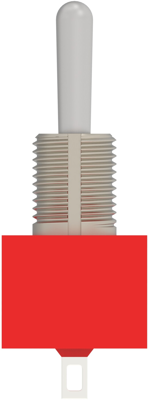

4-1825139-2 Alcoswitch Toggle Switches Image 3

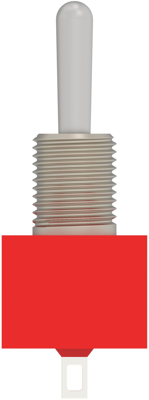

4-1825139-2 Alcoswitch Toggle Switches Image 4

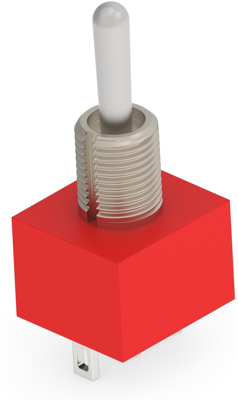

4-1825139-2 Alcoswitch Toggle Switches Image 5
Image may differ
Unit Price (€ / pc.)
12.5426 € *
Available: 4 pcs.
Leadtime: On Request **
Total Price:
12.54 € *
Price list
Quantity
Price per unit*
1 pcs.
12.5426 €
10 pcs.
11.5430 €
50 pcs.
10.4958 €
100 pcs.
9.4486 €
*incl. VAT plus shipping costs
**Subject to prior sale

Toggle Switch, 4-1825139-2, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton Standard, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Double Pole - Three Throw, Operating Function: On On (On), Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 28 VDC, Toggle Switch Voltage Rating: 125 VAC, 28 VDC, Toggle Switch Voltage Rating: 120 VAC, Actuator Finish: Nickel, Bushing Thread Size: 1/4-40, Toggle Switch Seal Type: Terminal Seal (Insert Molded), Bushing Style: Threaded, Contact Base Material: Copper, Switch Contact Plating Material: Silver, Toggle Switch Contact Current Rating: 5 A, Termination Type: Vertical,Wire Lugs, Toggle Switch Mounting Type: Panel, Process Sealed: No, Toggle Length: 10.4 mm, UL Flammability Rating: UL 94V-0, Comment: UL available when ordering - consult factory.

Technical specifications
Connection solder connection
Design vertical
Type of mounting central Mounting
illuminated No
Actuator colour metal
contact surface silver-plated
Pin number 2 pole
Latching switching function latching/groping
Breaking capacity 5 A/125 VAC, 28 VDC
Shift position On-Off-(On)
Logistics
Country of origin TW
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
