4-1825139-5 | Alcoswitch

Toggle switch, metal, 2 pole, groping/latching, (On)-Off-(On), 5 A/125 VAC, 28 VDC, silver-plated, 4-1825139-5

Order No.: 19G1889
EAN: 4099889182521
MPN:
4-1825139-5
A215SYZQ04
Series: Gemini A

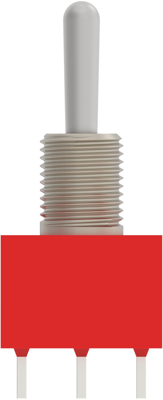

4-1825139-5 Alcoswitch Toggle Switches Image 1

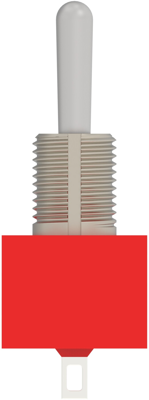

4-1825139-5 Alcoswitch Toggle Switches Image 2

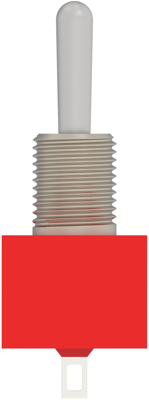

4-1825139-5 Alcoswitch Toggle Switches Image 3

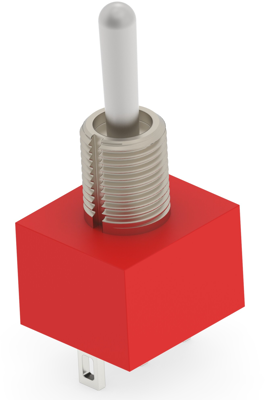

4-1825139-5 Alcoswitch Toggle Switches Image 4

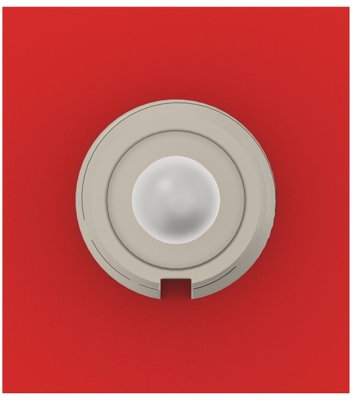

4-1825139-5 Alcoswitch Toggle Switches Image 5
Image may differ
Unit Price (€ / pc.)
3.8437 € *
Available: 0 pcs.
Available in 5 Days: 185 pcs.
Leadtime: 18 Weeks **
Total Price:
96.09 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 pcs.
3.8437 €

Toggle Switch, 4-1825139-5, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton Standard, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Double Pole - Three Throw, Operating Function: (On) On (On), Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 28 VDC, Toggle Switch Voltage Rating: 125 VAC, 28 VDC, Toggle Switch Voltage Rating: 120 VAC, Actuator Finish: Nickel, Bushing Thread Size: 1/4-40, Toggle Switch Seal Type: Terminal Seal (Insert Molded), Bushing Style: Threaded, Contact Base Material: Copper, Switch Contact Plating Material: Silver, Toggle Switch Contact Current Rating: 5 A, Termination Type: Vertical,Wire Lugs, Toggle Switch Mounting Type: Panel, Process Sealed: No, Toggle Length: 10.4 mm, UL Flammability Rating: UL 94V-0, Comment: UL available when ordering - consult factory.

Technical specifications
Anschluss Lötanschluss
Bauform stehend
Befestigungsart Zentralbefestigung
beleuchtet No
Farbe Betätiger metall
Kontaktoberfläche versilbert
Polzahl 2-polig
Schaltfunktion tastend/rastend
Schaltleistung 5 A/125 VAC, 28 VDC
Schaltstellung (Ein)-Aus-(Ein)
Logistics
Ursprungsland TW
Zolltarifnummer 85365080
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
