5-1825136-2 | Alcoswitch

Toggle switch, metal, 1 pole, latching, On-On, 0.4 VA/20 V AC/DC, gold-plated, 5-1825136-2

Order No.: 19G1794
EAN: 4099889181630
MPN:
5-1825136-2
A101T1ZB04
Series: Gemini A
Alcoswitch

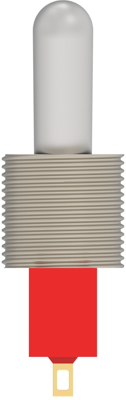

5-1825136-2 Alcoswitch Toggle Switches Image 1

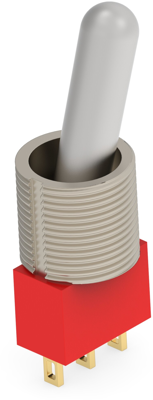

5-1825136-2 Alcoswitch Toggle Switches Image 2

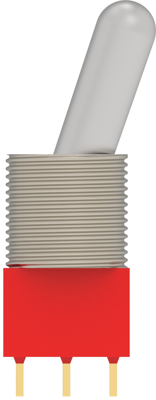

5-1825136-2 Alcoswitch Toggle Switches Image 3

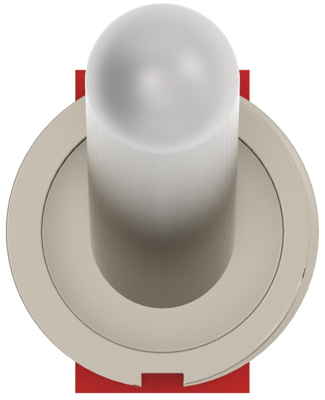

5-1825136-2 Alcoswitch Toggle Switches Image 4

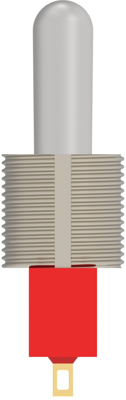

5-1825136-2 Alcoswitch Toggle Switches Image 5
Image may differ
Unit Price (€ / pc.)
6.5212 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
6.52 € *
Price list
Quantity
Price per unit*
500 pcs.
6.5212 €
1000 pcs.
6.3189 €
*incl. VAT plus shipping costs
**Subject to prior sale

Toggle Switch, 5-1825136-2, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Large with Bushing, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Single Pole - Double Throw, Operating Function: On On, Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 20 VDC, Toggle Switch Voltage Rating: 20 V, Toggle Switch Voltage Rating: 20 VAC, Actuator Finish: Nickel, Bushing Thread Size: 1/4-40, Toggle Switch Seal Type: Terminal Seal (Epoxy), Bushing Style: Threaded, Contact Base Material: Copper, Switch Contact Plating Material: Gold, Toggle Switch Contact Current Rating: .4 A, Termination Type: Wire Lugs, Toggle Switch Mounting Type: Solder, Process Sealed: No, Toggle Length: 12.4 mm, UL Flammability Rating: UL 94V-1

Technical specifications
Connection solder connection
Design vertical
Type of mounting central Mounting
illuminated No
Actuator colour metal
contact surface gold-plated
Pin number 1 pole
Latching switching function latching
Breaking capacity 0.4 VA/20 V AC/DC
Shift position On-On
Logistics
Country of origin US
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
