5-6437630-1 | Alcoswitch

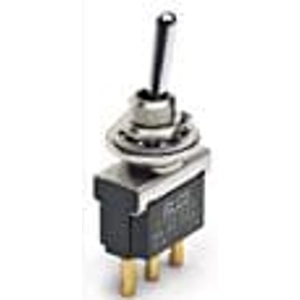

Toggle switch, metal, 1 pole, latching, On-Off-On, 0.4 VA/20 V AC/DC, gold-plated, 5-6437630-1
Unit Price (€ / pc.)
10.4363 € *
Available: 0 pcs.
Available in 5 Days: 1,891 pcs.
Leadtime: 36 Weeks **
Total Price:
10.44 € *
Price list
Quantity
Price per unit*
10 pcs.
10.4363 €
45 pcs.
10.2459 €
*incl. VAT plus shipping costs
**Subject to prior sale
Toggle switch, 5-6437630-1, Alcoswitch
The 5-6437630-1 is a miniature toggle with high current and high voltage rating in a small case. This product is panel mounted with 6.0 mm threaded bushing conforming to standard panel cut outs and are constructed of brass with chrome plating.
Features
- Gold-flashed to prevent oxidation and for ease of soldering
Applications
- Industrial
- Instrumentation
- Medical equipment
Technical specifications
| Connection | solder lug | |
| Design | vertical | |
| Type of mounting | panel mounting | |
| illuminated | No | |
| Actuator colour | metal | |
| contact surface | gold-plated | |
| Pin number | 1 pole | |
| Latching switching function | latching | |
| Breaking capacity | 0.4 VA/20 V AC/DC | |
| Shift position | On-Off-On | |
| Protection class | IP67 |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
