6-1825136-3 | Alcoswitch

Toggle switch, metal, 1 pole, latching/groping, On-(On), 5 A/120 VAC, 28 VDC, silver-plated, 6-1825136-3

Order No.: 19G1832
EAN: 4099889181982
MPN:
6-1825136-3
A108SYCQ04
Series: Gemini A

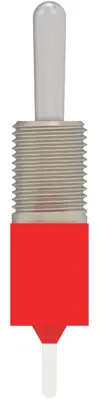

6-1825136-3 Alcoswitch Toggle Switches Image 1

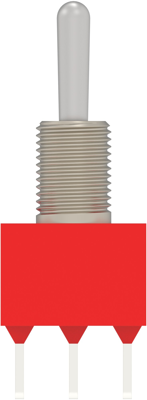

6-1825136-3 Alcoswitch Toggle Switches Image 2

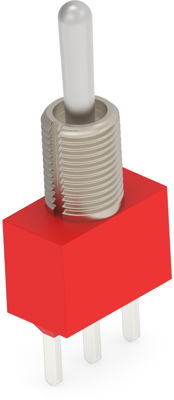

6-1825136-3 Alcoswitch Toggle Switches Image 3

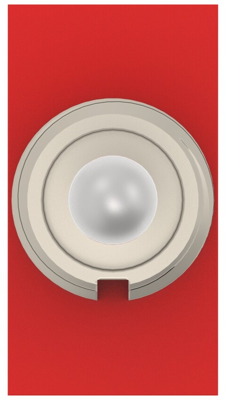

6-1825136-3 Alcoswitch Toggle Switches Image 4

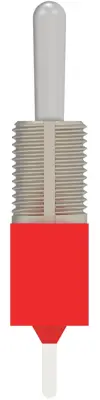

6-1825136-3 Alcoswitch Toggle Switches Image 5
Image may differ
Unit Price (€ / pc.)
6.8425 € *
Available: 0 pcs.
Available in 5 Days: 239 pcs.
Leadtime: 18 Weeks **
Total Price:
6.84 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8425 €
10 pcs.
6.2951 €
50 pcs.
5.6644 €
100 pcs.
5.0932 €
*incl. VAT plus shipping costs
**Subject to prior sale

Toggle Switch, 6-1825136-3, Alcoswitch

Product Type: Switch, Sealed Toggle Switch: Yes, Toggle Style: Baton Long, Toggle Switch Type: Toggle, Toggle Actuation: Vertical, Configuration (Pole-Throw): Single Pole - Double Throw, Operating Function: On (On), Contact Resistance: 10 mΩ, Toggle Switch Voltage Rating: 28 VDC, Toggle Switch Voltage Rating: 125 VAC, 28 VDC, Toggle Switch Voltage Rating: 120 VAC, Actuator Finish: Nickel, Bushing Thread Size: 1/4-40, Toggle Switch Seal Type: Terminal Seal (Epoxy), Bushing Style: Threaded, Contact Base Material: Copper, Switch Contact Plating Material: Silver, Toggle Switch Contact Current Rating: 5 A, Termination Type: Printed Circuit, Toggle Switch Mounting Type: Through Hole, Process Sealed: No, Toggle Length: 10.4 mm, UL Flammability Rating: UL 94V-1

Technical specifications
Anschluss Leiterplattenanschluss
Bauform stehend
Befestigungsart Zentralbefestigung
beleuchtet No
Farbe Betätiger metall
Kontaktoberfläche versilbert
Polzahl 1-polig
Schaltfunktion rastend/tastend
Schaltleistung 5 A/120 VAC, 28 VDC
Schaltstellung Ein-(Ein)
Logistics
Ursprungsland CH
Zolltarifnummer 85365080
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
