63250-01400/1K LIN | ALPHA

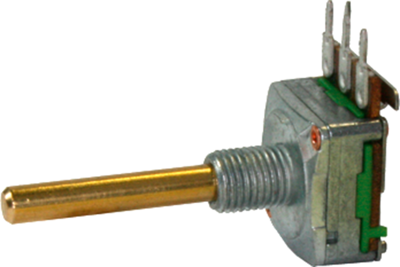

Film potentiometer, 1 kΩ, 0.2 W, linear, solder pin, 63250-01400/1K LIN
Unit Price (€ / pc.)
4.3316 € *
Available: 18 pcs.
Leadtime: On Request **
Total Price:
4.33 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3316 €
10 pcs.
3.8199 €
100 pcs.
3.3558 €
250 pcs.
3.2249 €
1000 pcs.
3.0107 €
*incl. VAT plus shipping costs
**Subject to prior sale
Film potentiometers, type ALPHASTAT 16 63250-014.

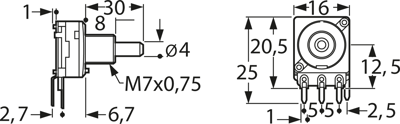

4.0 mm metal shaft, for PCB mounting; Shaft length: 30 mm. Adjustment range: 270° ±5.0 %. Bushing mount: M 7 x 0.75 mm.
Linear.
Load rating: 0.2 W.
Type: 1K0
Technical specifications
| ohmic resistance | 1 kΩ | |
| Connection | solder pin | |
| Version | film potentiometer | |
| Width | 20 mm | |
| Mechanic rotary range | 270 ° | |
| axle diameter | 4 mm | |
| Contact distance | RM 5 | |
| Length | 16 mm | |
| Power | 0.2 W | |
| max. number of revolutions | 1 | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -25 °C | |
| Assembly | angled | |
| Track Taper | linear |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85334010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
