63250-01600/1K LIN | ALPHA

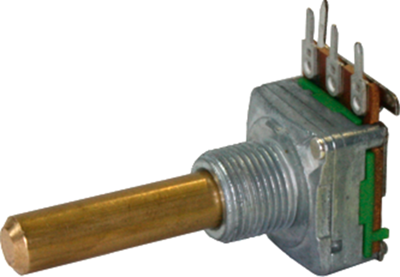

Film potentiometer, 1 kΩ, 0.2 W, linear, solder pin, 63250-01600/1K LIN
Unit Price (€ / pc.)
4.5815 € *
Available: 12 pcs.
Leadtime: On Request **
Total Price:
4.58 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5815 €
10 pcs.
4.0222 €
100 pcs.
3.5343 €
250 pcs.
3.4034 €
1000 pcs.
3.1892 €
*incl. VAT plus shipping costs
**Subject to prior sale
Film potentiometers, type ALPHASTAT 16 63250-016.

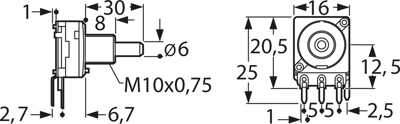

6.0 mm metal shaft, for PCB mounting; Shaft length: 30 mm. Adjustment range: 270° ±5.0 %. Bushing mount: M 10 x 0.75 mm.
Linear.
Load rating: 0.2 W.
Type: 1K0
Technical specifications
| ohmscher Widerstand | 1 kΩ | |
| Anschluss | Lötstift | |
| Ausführung | Schichtpotentiometer | |
| Breite | 16 mm | |
| Drehbereich (mechanisch) | 270 ° | |
| Durchmesser der Achse | 6 mm | |
| Kontaktabstand | RM 5 | |
| Länge | 20.5 mm | |
| Leistung | 0.2 W | |
| max. Temperatur | 70 °C | |
| min. Temperatur | -25 °C | |
| Montage | gewinkelt | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85334010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 6/8/11 |
| SVHC frei | Yes |
